Husqvarna CRT900L - 2016-8 - Transmission

Name: Husqvarna CRT900L - 2016-8 - Transmission
SKU: crt900l_2016_8_transmission-group
Price: 1.95 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna CRT900L - 2016-8 - Transmission

Description

Husqvarna CRT900L

Model Year - 2016-8 - 96093002602

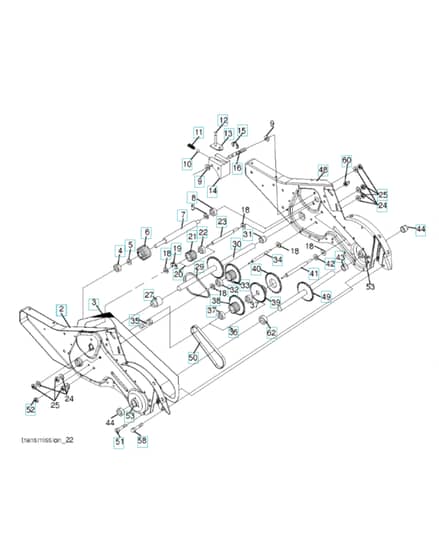

Transmission - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
4	HV532 00 50-20 Available to backorder	Bearing	£20.56 £17.13
5	HV532 00 13-70 Available to backorder	Washer	£4.66 £3.88
6	HV586 19 63-01 Available to backorder	Pinion	£51.82 £43.18
7	HV532 14 51-01 Available to backorder	Shaft	£17.46 £14.55
11	HV532 10 03-71 Available to backorder	Spring	£3.36 £2.80
14	HV532 00 83-53 Available to backorder	Fork	£31.72 £26.43
16	HV532 15 44-66 Available to backorder	Shaft	£21.60 £18.00
20	HV532 10 21-14 Available to backorder	Gear Assy	£66.94 £55.78
21	HV532 10 21-15 Available to backorder	Gear	£56.14 £46.78
22	HV532 00 68-03 Available to backorder	Bearing	£6.36 £5.30
23	HV532 10 21-11 Available to backorder	Shaft	£39.32 £32.77
24	HV810 04 07-00 Available to backorder	Washer	£3.18 £2.65
27	HV532 43 12-19 Available to backorder	Bearinglh	£13.36 £11.13
29	HV532 10 21-34 Available to backorder	Chain	£25.92 £21.60
36	HV532 15 43-55 Available to backorder	Wheel	£77.64 £64.70
37	HV585 69 55-02 Available to backorder	Bearing	£11.26 £9.38
40	HV532 10 53-46 Available to backorder	Gear	£109.40 £91.17
41	HV532 00 83-58 Available to backorder	Shaft	£21.62 £18.02
42	HV532 00 42-20 Available to backorder	Washer	£3.12 £2.60
43	HV532 10 61-46 Available to backorder	Spacer	£13.58 £11.32
44	HV532 15 52-36 Available to backorder	Spacer	£9.72 £8.10
50	HV532 10 61-47 Available to backorder	Chain	£110.84 £92.37
52	HV873 22 05-00 Available to backorder	Nut	£2.34 £1.95
53	HV532 16 51-40 In stock	Bearing	Was £78.24 £65.20 Special Price £53.84 £44.87
58	HV532 17 95-20 Available to backorder	Screw	£4.54 £3.78
60	HV532 18 32-26 Available to backorder	Fitting	£7.76 £6.47
