Husqvarna CRT900L - 2016-8 - Mainframe - Left Side

Name: Husqvarna CRT900L - 2016-8 - Mainframe - Left Side
SKU: crt900l_2016_8_mainframe_left_side-group
Price: 0.53 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna CRT900L - 2016-8 - Mainframe - Left Side

Description

Husqvarna CRT900L

Model Year - 2016-8 - 96093002602

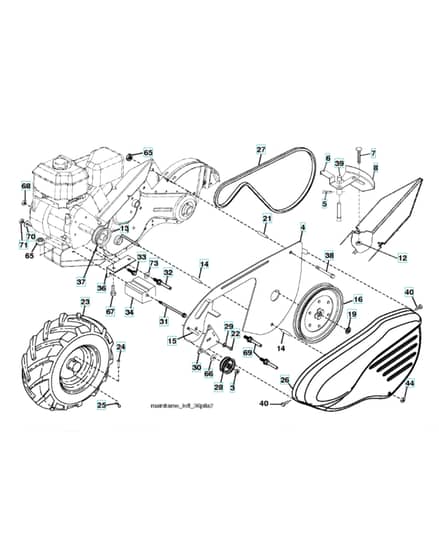

Mainframe - Left Side - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
4	HV583 87 77-01 Available to backorder	Shield	£25.02 £20.85
5	HV532 16 43-29 Available to backorder	Pin	£4.14 £3.45
6	HV532 11 01-11 Available to backorder	Lever	£12.28 £10.23
8	HV581 84 50-01 Available to backorder	Indicator Panel	£7.76 £6.47
13	HV823 23 05-06 Available to backorder	Screw	£1.54 £1.28
14	HV532 15 61-17 Available to backorder	Spacer	£7.12 £5.93
15	HV585 83 12-01 Available to backorder	Spacer	£2.84 £2.37
16	HV532 14 51-02 Available to backorder	Pulley	£104.28 £86.90
19	HV812 00 00-28 Available to backorder	Clip	£0.64 £0.53
21	HV585 83 08-01 Available to backorder	Spacer	£5.18 £4.32
22	HV874 77 05-08 Available to backorder	Bolt	£3.36 £2.80
23	HV581 57 64-02 Available to backorder	Wheel Assy	£143.48 £119.57
26	HV532 44 04-38 Available to backorder	Belt Guard	£86.04 £71.70
27	HV591 37 24-01 Available to backorder	Belt	£25.28 £21.07
28	HV532 10 46-79 Available to backorder	Pulley	£16.56 £13.80
29	HV812 00 00-32 Available to backorder	Retainer Ring	£0.77 £0.64
30	HV584 28 92-01 Available to backorder	Bracket	£16.18 £13.48
31	HV581 74 72-01 Available to backorder	Screw	£3.36 £2.80
33	HV874 76 06-16 Available to backorder	Bolt	£2.06 £1.72
34	HV581 01 06-01 Available to backorder	Weight	£120.98 £100.82
36	HV581 86 48-01 Available to backorder	Bracketlh	£4.76 £3.97
37	HV532 13 08-12 Available to backorder	Pulley	£18.00 £15.00
39	HV532 14 00-62 Available to backorder	Cap	£7.12 £5.93
40	HV532 17 04-88 Available to backorder	Screw	£2.34 £1.95
44	HV596 04 05-01 Available to backorder	Lock Nut	£2.06 £1.72
67	HV874 76 05-28 Available to backorder	Bolt	£6.34 £5.28
68	HV873 51 06-00 Available to backorder	Nut	£3.24 £2.70
71	HV596 32 26-01 Available to backorder	Nut	£3.79 £3.16
