Husqvarna COMBI 155 - 61"/155cm Cutting Deck 4

Description

Husqvarna COMBI 155

Model Year -

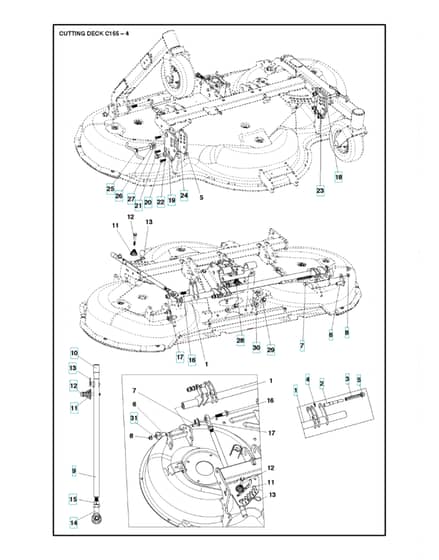

61"/155cm Cutting Deck 4 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV586 23 86-01 Available to backorder	Crossbar	£228.12 £190.10
2	HV579 59 59-01 Available to backorder	Cotter	£10.36 £8.63
3	HV579 50 34-01 Available to backorder	Spring	£3.76 £3.13
4	HV735 31 13-20 Available to backorder	E-Clip	£0.77 £0.64
5	HV576 64 57-05 Available to backorder	Nut Flange	£4.40 £3.67
6	HV586 36 70-01 Available to backorder	Cotter	£5.44 £4.53
7	HV535 42 38-05 Available to backorder	Screw Rsqm	£5.32 £4.43
9	HV586 22 43-01 Available to backorder	Stay	£97.68 £81.40
10	HV521 90 35-01 Available to backorder	Knob	£7.12 £5.93
11	HV586 22 51-01 Available to backorder	Spring	£9.06 £7.55
12	HV506 57 01-08 Available to backorder	Screw Ehhfm	£1.82 £1.52
13	HV721 68 02-51 Available to backorder	Spring Cotter	£0.92 £0.77
14	HV506 95 17-04 Available to backorder	Rod End	£24.58 £20.48
16	HV576 65 48-05 Available to backorder	Screw Ehhfm	£9.72 £8.10
18	HV586 22 53-01 Available to backorder	Guide Plate	£46.58 £38.82
19	HV586 22 53-02 Available to backorder	Guide Plate	£46.58 £38.82
20	HV587 96 19-02 Available to backorder	Screw Itxcsfm	£5.82 £4.85
21	HV506 89 58-01 Available to backorder	Collar Screw	£9.06 £7.55
22	HV587 63 94-01 Available to backorder	Spring Washer	£2.98 £2.48
23	HV586 23 74-01 Available to backorder	Locking Plate	£30.40 £25.33
24	HV586 23 74-02 Available to backorder	Locking Plate	£30.40 £25.33
25	HV586 23 73-01 Available to backorder	Locking Bolt	£28.46 £23.72
26	HV586 54 22-01 Available to backorder	Spring Washer	£5.00 £4.17
27	HV586 54 29-01 Available to backorder	Fixing Washer	£2.58 £2.15
28	HV588 14 42-01 Available to backorder	Support Sheet	£40.12 £33.43
30	HV506 67 54-01 Available to backorder	Screw Ehhfm	£7.12 £5.93
31	HV738 88 10-01 Available to backorder	Lubrication Nipple	£11.00 £9.17
