Husqvarna COMBI 132X - 52" 132cm Cutting Deck 7

Description

Husqvarna COMBI 132X

Model Year -

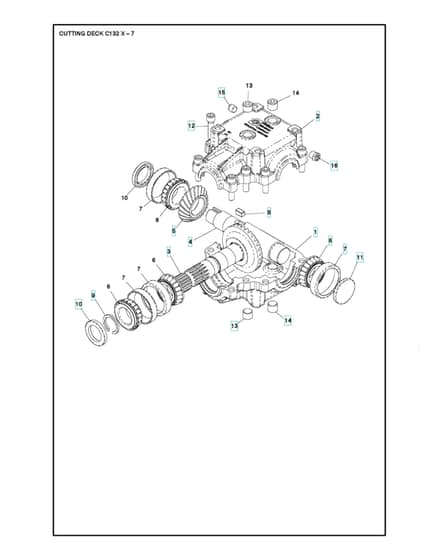

52" 132cm Cutting Deck 7 - Parts Diagram

	Part No.	Details
1	HV588 42 19-01 Available to backorder	Housing	£142.44 £118.70
2	HV588 42 20-01 Available to backorder	Housing	£148.68 £123.90
3	HV588 42 21-01 Available to backorder	Shaft	£192.00 £160.00
4	HV588 42 22-01 Available to backorder	Shaft	£154.92 £129.10
5	HV588 42 23-01 Available to backorder	Gear	£337.40 £281.17
6	HV588 42 24-01 Available to backorder	Bearing	£8.53 £7.11
7	HV588 42 25-01 Available to backorder	Bearing Ring	£7.87 £6.56
8	HV588 42 26-01 Available to backorder	Key	£5.90 £4.92
9	HV588 42 27-01 Available to backorder	Retainer Ring	£3.22 £2.68
10	HV588 42 28-01 Available to backorder	Seal	£6.40 £5.33
11	HV588 42 29-01 Available to backorder	Cap	£5.78 £4.82
12	HV588 42 30-01 Available to backorder	Bolt	£3.59 £2.99
13	HV588 42 31-01 Available to backorder	Plug	£5.24 £4.37
14	HV588 42 32-01 Available to backorder	Plug	£4.74 £3.95
15	HV588 42 33-01 Available to backorder	Plug	£4.22 £3.52
16	HV588 42 35-01 Available to backorder	Plug	£5.02 £4.18
