Husqvarna COMBI 132 - 52"/132cm Cutting Deck 2

Name: Husqvarna COMBI 132 - 52"/132cm Cutting Deck 2
SKU: combi_132_52_132cm_cutting_deck_2-group
Price: 2.73 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna COMBI 132 - 52"/132cm Cutting Deck 2

Description

Husqvarna COMBI 132

Model Year -

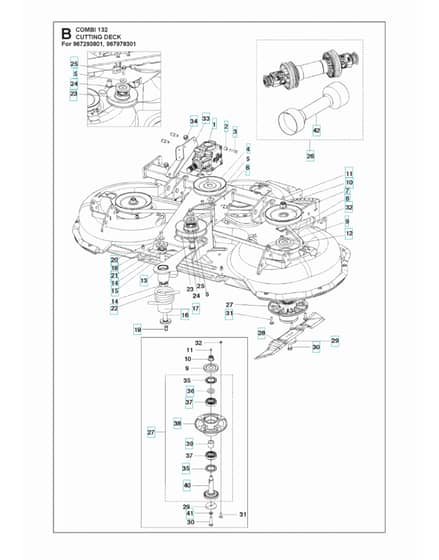

52"/132cm Cutting Deck 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV586 22 40-01 Available to backorder	Bevel Gear	£476.40 £397.00
2	HV585 87 73-01 Available to backorder	Sleeve	£4.54 £3.78
3	HV504 02 13-02 Available to backorder	Screw	£4.78 £3.98
4	HV585 14 51-02 Available to backorder	Pulley Assy	£53.26 £44.38
5	HV544 22 16-01 Available to backorder	Washer	£5.18 £4.32
7	HV583 89 81-01 Available to backorder	Pulley Assy	£64.78 £53.98
8	HV506 53 35-01 Available to backorder	Parallel Key	£4.54 £3.78
9	HV577 97 08-01 Available to backorder	Dust Cover	£7.12 £5.93
10	HV577 41 19-01 Available to backorder	Nut Flange	£4.20 £3.50
11	HV738 88 10-01 Available to backorder	Lubrication Nipple	£11.00 £9.17
12	HV589 56 42-01 Available to backorder	Belt	£121.60 £101.33
13	HV586 22 58-01 Available to backorder	Arm	£120.34 £100.28
14	HV738 22 03-19 Available to backorder	Ball Bearing	£8.62 £7.18
15	HV586 22 67-01 Available to backorder	Distance	£11.64 £9.70
16	HV586 22 64-01 Available to backorder	Shaft	£203.28 £169.40
18	HV725 24 69-51 Available to backorder	Screw Ehhm	£5.82 £4.85
20	HV734 11 64-41 Available to backorder	Washer	£3.28 £2.73
22	HV586 22 61-01 Available to backorder	Spring	£124.86 £104.05
23	HV585 12 81-01 Available to backorder	Belt Tensioner Wheel Assy	£163.04 £135.87
24	HV587 48 83-01 Available to backorder	Dust Cover	£12.28 £10.23
25	HV506 57 01-06 Available to backorder	Screw Ehhfm	£6.34 £5.28
26	HV586 49 32-01 Available to backorder	Shaft Assy	£204.60 £170.50
27	HV588 22 62-01 Available to backorder	Bearing Housing Assy	£240.24 £200.20
28	HV586 19 88-10 Available to backorder	Blade	£49.56 £41.30
29	HV588 14 56-02 Available to backorder	Plate	£14.88 £12.40
30	HV725 25 42-86 Available to backorder	Screw Ehhm	£8.40 £7.00
31	HV535 42 38-05 Available to backorder	Screw Rsqm	£5.32 £4.43
33	HV586 22 41-01 Available to backorder	Bracket	£55.00 £45.83
34	HV506 67 54-01 Available to backorder	Screw Ehhfm	£7.12 £5.93
35	HV577 22 60-01 Available to backorder	Radial Seal	£24.74 £20.62
36	HV577 16 24-01 Available to backorder	Spacer	£3.36 £2.80
37	HV580 39 80-01 Available to backorder	Ball Bearing	£11.26 £9.38
39	HV577 20 78-01 Available to backorder	Spacer	£6.20 £5.17
40	HV577 97 07-01 Available to backorder	Blade Bracket	£97.88 £81.57
41	HV579 81 17-01 Available to backorder	Spring Washer	£6.20 £5.17
42	HV579 76 73-01 Available to backorder	Cover Assy	£116.44 £97.03
