Husqvarna COMBI 132 - 52"/132cm Cutting Deck 12

Description

Husqvarna COMBI 132

Model Year -

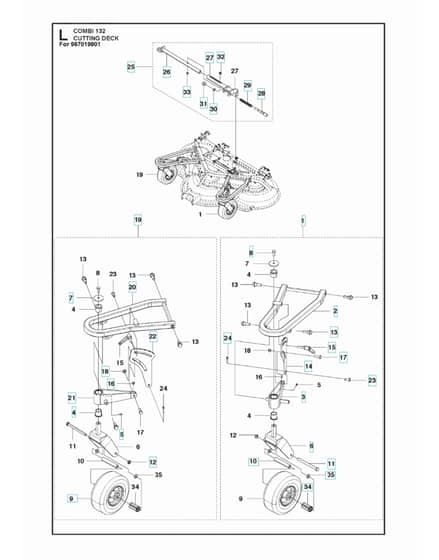

52"/132cm Cutting Deck 12 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV544 17 32-01 Available to backorder	Wheel Suspension	£171.82 £143.18
4	HV544 17 41-02 Available to backorder	Bearing Bush	£42.04 £35.03
5	HV738 88 10-01 Available to backorder	Lubrication Nipple	£11.00 £9.17
6	HV544 17 34-01 Available to backorder	Fork	£118.16 £98.47
7	HV506 98 25-01 Available to backorder	Washer	£22.00 £18.33
8	HV506 67 54-01 Available to backorder	Screw Ehhfm	£7.12 £5.93
10	HV539 10 18-72 Available to backorder	Spacer	£14.22 £11.85
11	HV725 25 59-51 Available to backorder	Screw Ehhm	£13.58 £11.32
12	HV732 25 22-01 Available to backorder	Hexagon Locking Nut	£5.96 £4.97
13	HV506 89 58-01 Available to backorder	Collar Screw	£9.06 £7.55
14	HV544 17 50-01 Available to backorder	Sheet	£44.64 £37.20
15	HV544 19 18-01 Available to backorder	Turning Knob	£25.88 £21.57
16	HV544 20 02-01 Available to backorder	Sleeve	£5.82 £4.85
17	HV725 24 95-71 Available to backorder	Screw Ehhm	£7.12 £5.93
18	HV732 21 20-51 Available to backorder	Nut	£4.06 £3.38
20	HV544 17 35-02 Available to backorder	Supporting Arm	£139.74 £116.45
22	HV544 17 50-02 Available to backorder	Sheet	£44.64 £37.20
23	HV721 84 56-01 Available to backorder	Clevis Pin	£21.62 £18.02
24	HV721 61 83-01 Available to backorder	Split Pin	£0.77 £0.64
25	HV579 74 47-01 Available to backorder	Stay	£98.98 £82.48
26	HV579 28 53-01 Available to backorder	Stay	£33.64 £28.03
27	HV579 28 54-01 Available to backorder	Stay	£32.26 £26.88
28	HV579 59 59-01 Available to backorder	Cotter	£10.36 £8.63
29	HV579 50 34-01 Available to backorder	Spring	£3.76 £3.13
30	HV735 31 13-20 Available to backorder	E-Clip	£0.77 £0.64
31	HV576 64 57-05 Available to backorder	Nut Flange	£4.40 £3.67
33	HV732 21 16-01 Available to backorder	Lock Nut	£1.82 £1.52
34	HV539 97 73-53 Available to backorder	Roller Bearing	£24.54 £20.45
35	HV539 97 73-56 Available to backorder	Endcap. Notched	£5.24 £4.37
