Husqvarna COMBI 112 - 44" 112cm Cutting Deck 3

Name: Husqvarna COMBI 112 - 44" 112cm Cutting Deck 3
SKU: combi_112_44_112cm_cutting_deck_3-group
Price: 1.91 GBP
Availability: InStock

Part No. combi_112_44_112cm_cutting_deck_3-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna COMBI 112 - 44" 112cm Cutting Deck 3

Description

Husqvarna COMBI 112

Model Year -

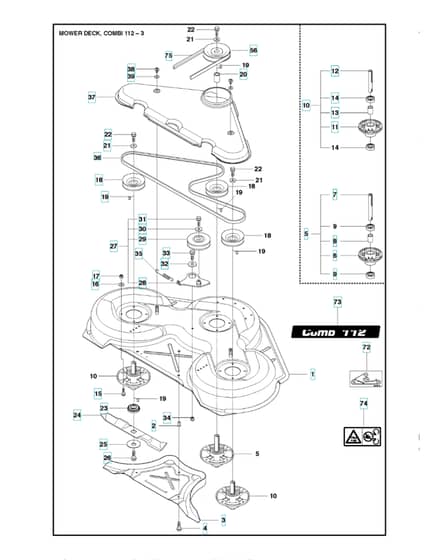

44" 112cm Cutting Deck 3 - Parts Diagram

	Part No.	Details
1	HV504 56 99-01 Available to backorder	Deck Shell Assy	£599.59 £499.66
2	HV506 91 62-01 Available to backorder	Nut	£6.01 £5.01
3	HV544 44 93-01 Available to backorder	Plug	£121.32 £101.10
4	HV506 57 01-04 Available to backorder	Screw Ehhfm	£5.02 £4.18
5	HV576 89 90-01 Available to backorder	Blade Housing Assy	£162.24 £135.20
7	HV576 86 58-01 Available to backorder	Shaft	£50.62 £42.18
10	HV576 89 90-02 In stock	Blade Housing Assy	£146.36 £121.97
11	HV576 38 42-01 Available to backorder	Bearing Housing	£73.32 £61.10
12	HV535 42 87-02 Available to backorder	Shaftfor 966607201 - 2013. 966607201 - 2011	£66.84 £55.70
12	HV576 86 58-02 Available to backorder	Shaftfor 967847901. 967722801. 967292201. & 966607201 - 2014	£34.21 £28.51
13	HV576 89 82-01 Available to backorder	Spacing Sleevefor 967847901. 967722801. 967292201. & 966607201 - 2014	£21.78 £18.15
14	HV738 22 05-19 Available to backorder	Ball Bearing	£9.85 £8.21
15	HV535 42 38-01 Available to backorder	Screw Rsqm	£5.02 £4.18
16	HV734 11 64-01 Available to backorder	Washer	£2.29 £1.91
18	HV535 42 90-01 Available to backorder	Pulley	£79.32 £66.10
19	HV506 53 35-01 Available to backorder	Parallel Key	£4.57 £3.81
20	HV535 42 88-01 Available to backorder	Spacerfor 966607201 - 2013. 966607201 - 2011	£8.98 £7.48
21	HV535 42 92-01 Available to backorder	Washer	£9.79 £8.16
23	HV535 50 42-01 Available to backorder	Adapter	£19.21 £16.01
24	HV544 10 27-10 Available to backorder	Blade	£45.80 £38.17
25	HV588 14 56-02 Available to backorder	Plate	£14.74 £12.28
26	HV725 25 42-51 Available to backorder	Screw Ehhm	£8.29 £6.91
27	HV586 40 05-01 Available to backorder	Belt Tensioner Assy	£41.65 £34.71
28	HV581 92 81-01 Available to backorder	Armnew 50 mm	£33.31 £27.76
29	HV506 53 27-01 Available to backorder	Pulley	£59.06 £49.22
30	HV734 11 64-41 In stock	Washer	£3.25 £2.71
31	HV506 55 83-02 Available to backorder	Screw Ehhft	£3.59 £2.99
32	HV576 92 26-01 Available to backorder	Washernew 50 mm	£22.69 £18.91
33	HV725 24 53-71 Available to backorder	Screw Ehhm	£4.46 £3.72
34	HV732 21 18-01 In stock	Lock Nut	£2.38 £1.98
35	HV506 53 31-01 In stock	Spring	£11.87 £9.89
36	HV593 80 64-01 In stock	Belt	£64.80 £54.00
37	HV544 09 62-01 Available to backorder	Belt Cover	£48.00 £40.00
38	HV506 98 26-01 Available to backorder	Screw	£2.56 £2.13
39	HV506 55 97-01 Available to backorder	Washer	£2.30 £1.92
56	HV544 25 56-01 Available to backorder	Pulley	£48.48 £40.40
72	HV506 78 97-01 Available to backorder	Label	£5.09 £4.24
73	HV544 23 81-05 Available to backorder	Label	£3.79 £3.16
74	HV574 51 00-01 Available to backorder	Decal	£3.07 £2.56
75	HV589 53 90-01 Available to backorder	Beltfor 967722801. 967292201. 966607201	£126.36 £105.30
