Husqvarna Cd52 P-Zt - Mower Deck & Cutting Deck

Name: Husqvarna Cd52 P-Zt - Mower Deck & Cutting Deck
SKU: cd52_p_zt_2012_03_mower_deck_cutting_deck-group
Price: 1.71 GBP
Availability: InStock

Part No. cd52_p_zt_2012_03_mower_deck_cutting_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Cd52 P-Zt - Mower Deck & Cutting Deck

Description

Husqvarna Cd52 P-Zt

Model Year - 2012-03

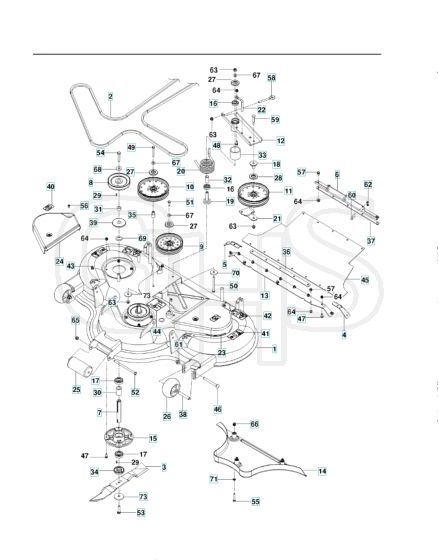

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
2	HV589 56 47-01 Available to backorder	Belt	£216.84 £180.70
3	HV586 19 88-10 Available to backorder	Blade	£51.28 £42.73
7	HV535 42 87-02 Available to backorder	Shaft	£66.84 £55.70
9	HV510 01 96-01 Available to backorder	Pulley	£77.16 £64.30
10	HV525 59 82-01 Available to backorder	Pulley	£83.64 £69.70
11	HV510 01 51-01 Available to backorder	Pulley	£90.96 £75.80
15	HV535 42 89-01 Available to backorder	Bearing Housing	£94.56 £78.80
17	HV738 22 05-19 Available to backorder	Ball Bearing	£9.85 £8.21
23	HV539 11 25-08 Available to backorder	Shield	£132.96 £110.80
24	HV539 11 25-09 Available to backorder	Shield	£110.40 £92.00
25	HV544 18 54-01 Available to backorder	Roller	£71.28 £59.40
26	HV574 16 96-01 Available to backorder	Roller	£32.68 £27.23
29	HV506 53 35-01 Available to backorder	Parallel Key	£4.57 £3.81
30	HV535 42 88-01 Available to backorder	Spacer	£8.98 £7.48
31	HV539 11 26-09 Available to backorder	Spacer	£10.26 £8.55
34	HV539 13 27-78 Available to backorder	Bushing	£58.40 £48.67
35	HV539 10 32-95 Available to backorder	Bushing	£33.31 £27.76
38	HV574 19 64-01 Available to backorder	Tube	£25.64 £21.37
39	HV539 10 84-50 Available to backorder	Hub Cap	£10.26 £8.55
41	HV539 10 57-44 Available to backorder	Decalbelt Drive Warn	£7.70 £6.42
46	HV510 02 23-01 Available to backorder	Screw	£28.84 £24.03
47	HV539 99 02-08 Available to backorder	Screw	£4.74 £3.95
49	HV539 10 26-12 Available to backorder	Screw	£8.34 £6.95
52	HV539 13 24-70 Available to backorder	Bolt	£7.06 £5.88
53	HV539 13 24-80 Available to backorder	Bolt	£8.98 £7.48
54	HV539 13 24-79 Available to backorder	Bolt	£8.98 £7.48
56	HV539 99 03-62 Available to backorder	Screw	£2.56 £2.13
61	HV521 99 11-01 Available to backorder	Nut	£7.06 £5.88
62	HV539 97 69-78 Available to backorder	Nut	£2.05 £1.71
64	HV539 11 28-99 Available to backorder	Nut. 5/16-18. Nyloc	£2.69 £2.24
65	HV539 99 08-39 Available to backorder	Nut	£4.12 £3.43
69	HV539 12 70-99 Available to backorder	Washer	£5.46 £4.55
70	HV539 10 65-04 Available to backorder	Washer	£6.40 £5.33
71	HV539 99 01-88 Available to backorder	Washer	£2.44 £2.03
73	HV506 79 23-02 In stock	Knife Plate	£14.71 £12.26
