Husqvarna Bz6172 D - Mainframe - Left Side 2

Husqvarna Bz6172 D - Mainframe - Left Side 2

Part No. bz6172_d_mainframe_left_side_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Bz6172 D - Mainframe - Left Side 2

Husqvarna Bz6172 D - Mainframe - Left Side 2

Description

Husqvarna Bz6172 D

Model Year -

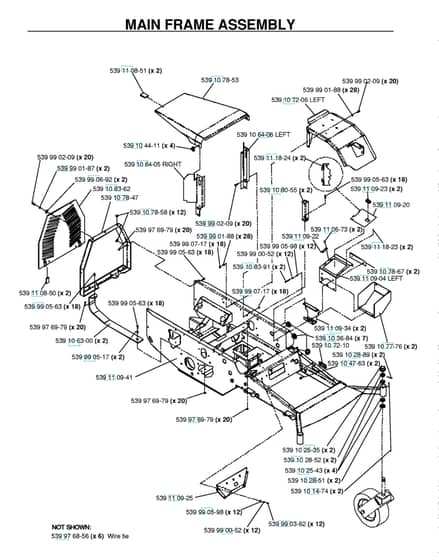

Mainframe - Left Side 2 - Parts Diagram

Ref.		Img.	Part No.	Details
	539		HV539 10 25-43 Available to backorder	Bearing		£9.22 £7.68
	539		HV539 10 28-89 Available to backorder	Split Pin		£2.44 £2.03
	539		HV539 99 01-88 Available to backorder	Washer		£2.44 £2.03
	539		HV539 99 05-17 Available to backorder	Washer		£3.84 £3.20
	539		HV539 10 14-74 Available to backorder	Nipple		£7.70 £6.42
	539		HV539 10 28-51 Available to backorder	Sealing		£15.66 £13.05
	539		HV539 97 69-79 Available to backorder	Nut		£2.94 £2.45
	539		HV539 99 02-09 Available to backorder	Screw		£4.22 £3.52
	539		HV539 99 07-17 Available to backorder	Nut		£2.44 £2.03
	539		HV539 10 25-35 Available to backorder	Cap		£16.49 £13.74
	539		HV539 10 28-52 Available to backorder	Nut		£5.18 £4.32
	539		HV539 99 01-87 Available to backorder	Washer		£2.56 £2.13
	539		HV539 99 03-62 Available to backorder	Screw		£2.56 £2.13

Description

Husqvarna Bz6172 D

Model Year -

Mainframe - Left Side 2 - Parts Diagram
