Husqvarna BS 75 - 970615007 - Cutting Head 02

Name: Husqvarna BS 75 - 970615007 - Cutting Head 02
SKU: BS_75_970615007_WC_485934_Original_20file-group
Price: 0.62 GBP
Availability: InStock

Part No. BS_75_970615007_WC_485934_Original_20file-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna BS 75 - 970615007 - Cutting Head 02

Description

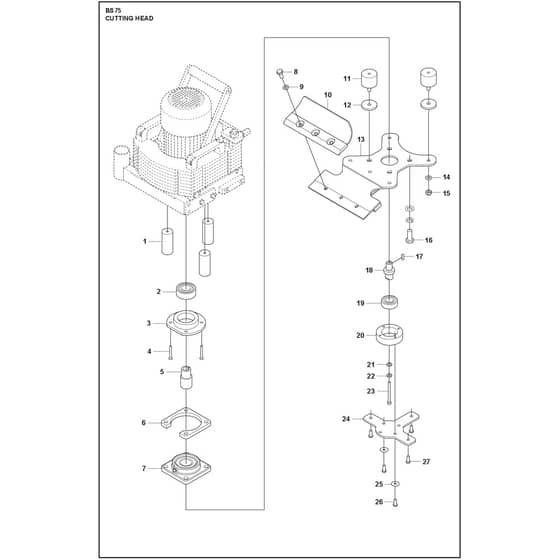

Husqvarna BS 75 - 970615007 - Cutting Head - Parts Diagram

	Part No.	Details
1	HV535 25 03-01 Available to backorder	Bush (Support bearing plate bush)	£16.84 £14.03
2	HV533 79 44-01 Available to backorder	Bearing (Bearing)	£116.16 £96.80
3	HV533 67 10-01 Available to backorder	Bearing Housing (Support bearing housing)	£177.24 £147.70
4	HV537 56 60-01 Available to backorder	Screw (M6 x 45)	£0.74 £0.62
5	HV533 26 98-01 Available to backorder	Bush (Eccentric bush)	£115.92 £96.60
10	HV534 32 87-02 Available to backorder	Cover (Blade cover BS 75)	£89.88 £74.90
13	HV534 42 16-02 Available to backorder	Head (Cutting head BS 75)	£129.60 £108.00
14	HV734 11 72-01 Available to backorder	Washer	£1.98 £1.65
15	HV576 64 57-05 Available to backorder	Nut Flange	£4.36 £3.63
18	HV547 47 26-01 Available to backorder	Support (Support bearing axle extended)	£82.92 £69.10
19	HV534 31 29-01 Available to backorder	Bearing (Bearing)	£85.80 £71.50
20	HV535 17 07-01 Available to backorder	Flange (Flange support bearing)	£181.44 £151.20
22	HV533 48 19-01 Available to backorder	Washer	£1.39 £1.16
24	HV535 25 02-01 Available to backorder	Plate (Support bearing plate)	£39.12 £32.60
25	HV734 11 64-41 In stock	Washer	£3.25 £2.71
26	HV504 75 02-02 Available to backorder	Screw Ihpanm	£1.69 £1.41
