Husqvarna Automower 430Xh - Chassis Lower

Name: Husqvarna Automower 430Xh - Chassis Lower
SKU: automower_430xh_chassis_lower-group
Price: 0.75 GBP
Availability: InStock

Part No. automower_430xh_chassis_lower-group

Description

Husqvarna Automower 430Xh

Model Year -

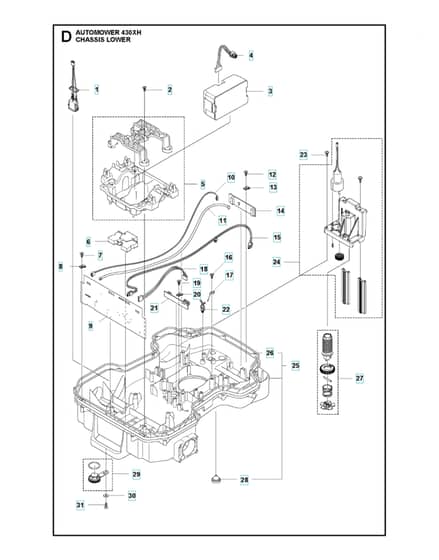

Chassis Lower - Parts Diagram

	Part No.	Details
1	HV579 70 87-01 Available to backorder	Wiring Assyswitch On-Off	£39.61 £33.01
4	HV591 20 36-01 Available to backorder	Wiring Assybattery	£11.94 £9.95
9	HV592 85 26-01 Available to backorder	Printed Circuit Assymain Board	£391.44 £326.20
10	HV588 81 84-02 Available to backorder	Wiring Assyled-Extension Wiring	£31.51 £26.26
11	HV579 70 82-01 Available to backorder	Wiring Assysensor Cable	£14.10 £11.75
14	HV592 85 27-01 Available to backorder	Printed Circuit Assypcba Loop Sensor	£62.40 £52.00
15	HV534 15 66-02 Available to backorder	Wiring Assycharging Cable	£29.36 £24.47
17	HV581 55 61-01 Available to backorder	Spring	£5.12 £4.27
18	HV579 70 80-01 Available to backorder	Wiring Assyheight Adjustment Wiring	£20.50 £17.08
20	HV579 52 94-01 Available to backorder	Clamp	£0.90 £0.75
21	HV579 72 85-02 Available to backorder	Printed Circuit Assypcba Height Adjustment	£41.05 £34.21
22	HV580 68 29-01 Available to backorder	Holderholder Twist Lock	£1.02 £0.85
23	HV575 54 33-14 In stock	Screw	£1.93 £1.61
24	HV501 06 83-01 Available to backorder	Motor Assy	£85.20 £71.00
26	HV574 87 47-05 Available to backorder	Sealing Strip1 Pcs. Diam 5 mm	£5.52 £4.60
27	HV581 62 16-01 Available to backorder	Screw Kit	£22.44 £18.70
28	HV584 89 75-01 Available to backorder	Grommet	£3.35 £2.79
29	HV581 62 12-02 Available to backorder	Plug Kit	£11.09 £9.24
30	HV734 11 37-41 Available to backorder	Washer	£3.07 £2.56
31	HV574 45 01-01 Available to backorder	Screw Itxpant	£1.79 £1.49
