Husqvarna Automower 330X - Chassis Upper

Name: Husqvarna Automower 330X - Chassis Upper
SKU: automower_330x_chassis_upper-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Automower 330X - Chassis Upper

Description

Husqvarna Automower 330X

Model Year -

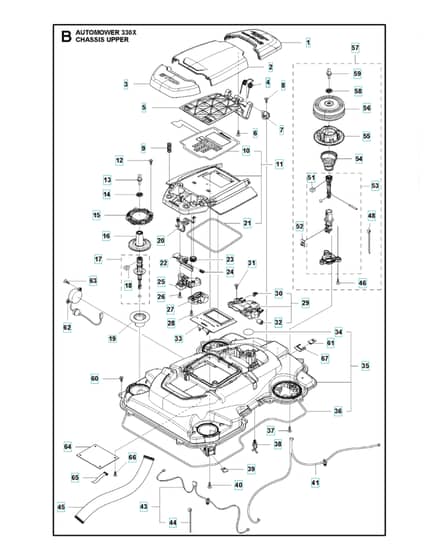

Chassis Upper - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV579 45 83-03 Available to backorder	Cover	£36.22 £30.18
2	HV579 45 85-01 Available to backorder	Hatch	£22.64 £18.87
3	HV579 45 81-01 Available to backorder	Button	£17.46 £14.55
4	HV586 26 01-01 Available to backorder	Torsion Springfor 2015 Models	£3.64 £3.03
4	HV580 67 30-01 Available to backorder	Torsion Springfor 2014 & 2013 Models	£5.18 £4.32
5	HV579 45 86-01 Available to backorder	Hinge	£17.68 £14.73
7	HV579 45 87-01 Available to backorder	Hinge Pin	£6.26 £5.22
10	HV579 62 79-02 Available to backorder	Keyboard	£92.76 £77.30
11	HV583 94 37-01 Available to backorder	Cover Kit	£88.36 £73.63
15	HV579 52 59-01 Available to backorder	Ring	£8.40 £7.00
17	HV501 12 26-02 Available to backorder	Joystick Kit	£15.54 £12.95
19	HV535 14 32-01 Available to backorder	Deflection Limiter	£8.40 £7.00
20	HV574 48 03-01 Available to backorder	Switch	£37.44 £31.20
21	HV574 87 47-06 Available to backorder	Sealing Stripø5 mm	£2.20 £1.83
22	HV579 45 88-01 Available to backorder	Locking Plate	£6.22 £5.18
23	HV579 45 84-01 Available to backorder	Gear Wheel	£6.62 £5.52
25	HV579 50 50-01 Available to backorder	Bracket	£8.40 £7.00
27	HV579 50 50-02 Available to backorder	Bracket	£8.40 £7.00
29	HV581 62 07-01 Available to backorder	Support Kit	£30.40 £25.33
30	HV580 35 45-01 Available to backorder	Clip	£0.92 £0.77
32	HV580 35 23-02 Available to backorder	Damperfor 2015 Models	£7.92 £6.60
32	HV580 35 23-01 Available to backorder	Damperfor 2014 & 2013 Models	£7.92 £6.60
33	HV578 12 71-01 Available to backorder	Printed Circuit Assy	£176.72 £147.27
34	HV577 75 37-01 Available to backorder	Filter10 Pcs	£64.20 £53.50
36	HV574 87 47-05 Available to backorder	Sealing Stripø5 mm	£5.46 £4.55
38	HV580 68 29-01 Available to backorder	Holder	£1.04 £0.87
41	HV581 66 09-02 Available to backorder	Wiring Assy	£18.82 £15.68
43	HV581 62 11-01 Available to backorder	Loom Kit	£19.04 £15.87
45	HV579 70 62-01 Available to backorder	Cable Assy	£49.52 £41.27
48	HV900 23 87-08 Available to backorder	Tie Wrap	£0.77 £0.64
51	HV503 22 66-01 Available to backorder	Square Nut	£2.94 £2.45
52	HV579 66 90-01 Available to backorder	Printed Circuit Assy	£18.49 £15.41
53	HV587 44 88-02 Available to backorder	Joystick Kit	£21.36 £17.80
54	HV580 67 25-01 Available to backorder	Spring	£7.12 £5.93
55	HV579 48 48-02 Available to backorder	Retainer	£11.64 £9.70
56	HV579 47 46-01 Available to backorder	Bellows	£12.78 £10.65
58	HV579 52 57-01 Available to backorder	Washer	£2.34 £1.95
59	HV580 52 67-01 Available to backorder	Stud	£1.56 £1.30
60	HV574 45 01-01 Available to backorder	Screw Itxpant	£1.82 £1.52
61	HV579 66 91-01 Available to backorder	Printed Circuit Assy	£17.96 £14.97
62	HV579 70 63-02 Available to backorder	Buzzer	£29.20 £24.33
64	HV581 01 40-01 Available to backorder	Printed Circuit Assy	£135.60 £113.00
65	HV581 29 18-01 Available to backorder	Loom	£10.78 £8.98
66	HV575 54 33-14 In stock	Screw	£1.54 £1.28
67	HV587 83 49-01 Available to backorder	Clip	£1.16 £0.97
