Husqvarna Automower 330X - Chassis Lower

Name: Husqvarna Automower 330X - Chassis Lower
SKU: automower_330x_chassis_lower-group
Price: 0.75 GBP
Availability: InStock

Part No. automower_330x_chassis_lower-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Automower 330X - Chassis Lower

Description

Husqvarna Automower 330X

Model Year -

Chassis Lower - Parts Diagram

	Part No.	Details
4	HV579 70 82-01 Available to backorder	Wiring Assy	£14.10 £11.75
6	HV580 37 07-01 Available to backorder	Loom	£14.52 £12.10
7	HV579 70 87-01 Available to backorder	Wiring Assy	£39.61 £33.01

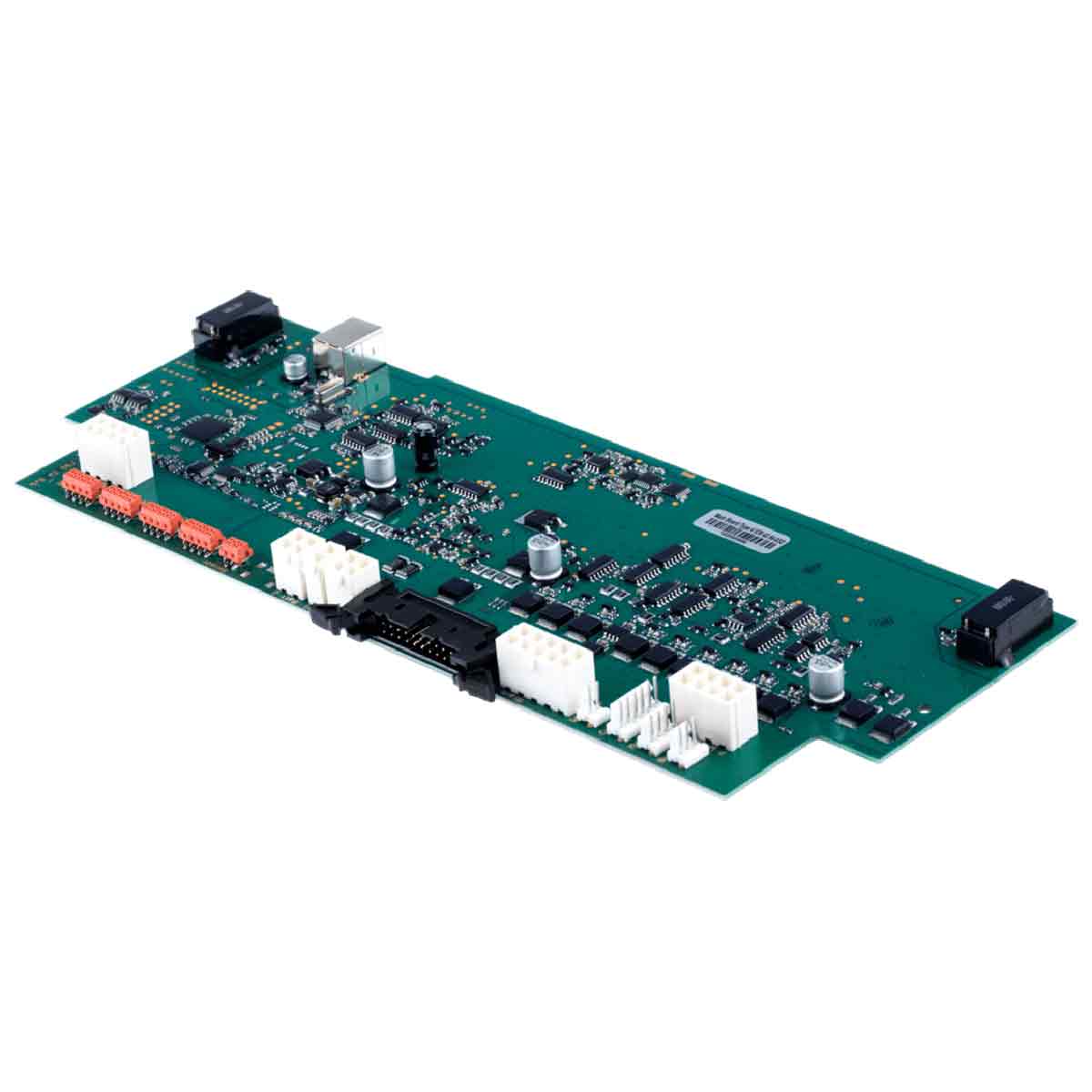

13	HV592 84 14-01 Available to backorder	Printed Circuit Assy	£321.36 £267.80
15	HV579 52 94-01 Available to backorder	Clamp	£0.90 £0.75
16	HV579 72 85-02 Available to backorder	HOC Printed Circuit Assy	£41.05 £34.21
18	HV581 55 61-01 Available to backorder	Spring	£5.12 £4.27
19	HV574 87 47-05 Available to backorder	Sealing Stripø5 mm	£5.52 £4.60
25	HV535 08 78-03 Available to backorder	Washer	£2.30 £1.92
27	HV581 62 15-01 Available to backorder	Shield Kit	£7.70 £6.42
28	HV580 48 71-01 Available to backorder	Sealing	£5.78 £4.82
30	HV579 45 71-01 Available to backorder	Wheel	£6.01 £5.01
31	HV574 44 98-01 Available to backorder	Wheel	£7.51 £6.26
32	HV580 44 51-01 Available to backorder	O-Ring	£3.82 £3.18
33	HV580 60 51-01 Available to backorder	Ball Bearing	£6.41 £5.34
34	HV580 76 46-01 Available to backorder	Washer	£2.30 £1.92
36	HV579 45 72-01 Available to backorder	Wheel	£7.06 £5.88
38	HV580 33 61-02 Available to backorder	Spindle	£14.98 £12.48
39	HV579 50 55-02 Available to backorder	Hub Cap	£6.19 £5.16
40	HV731 43 24-01 Available to backorder	Hexagon Thin Nut	£3.52 £2.93
41	HV586 21 06-01 Available to backorder	Washer	£6.26 £5.22
42	HV582 28 02-02 Available to backorder	Wheel Assy	£40.52 £33.77
45	HV583 94 44-01 Available to backorder	Motor Kitfor 2014 & 2013 Models	£325.92 £271.60
46	HV580 44 39-01 Available to backorder	O-Ring	£4.82 £4.02
47	HV574 45 01-01 Available to backorder	Screw Itxpant	£1.79 £1.49
50	HV581 62 16-01 Available to backorder	Screw Kit	£22.44 £18.70
51	HV581 62 18-01 Available to backorder	Bearing Kit	£8.48 £7.07
52	HV579 56 47-01 Available to backorder	Gear	£6.55 £5.46
53	HV510 01 87-03 Available to backorder	Screw	£1.13 £0.94
54	HV579 56 51-01 Available to backorder	Housing	£17.69 £14.74
55	HV575 54 33-14 In stock	Screw	£1.93 £1.61
58	HV579 70 80-01 Available to backorder	Wiring Assy	£20.50 £17.08
59	HV579 50 57-01 Available to backorder	Wheel Cover	£13.52 £11.27
61	HV734 11 37-41 Available to backorder	Washer	£3.07 £2.56
