Husqvarna Automower 315X - Chassis Lower

Name: Husqvarna Automower 315X - Chassis Lower
SKU: automower_315x_chassis_lower-group
Price: 0.75 GBP
Availability: InStock

Part No. automower_315x_chassis_lower-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Automower 315X - Chassis Lower

Description

Husqvarna Automower 315X

Model Year -

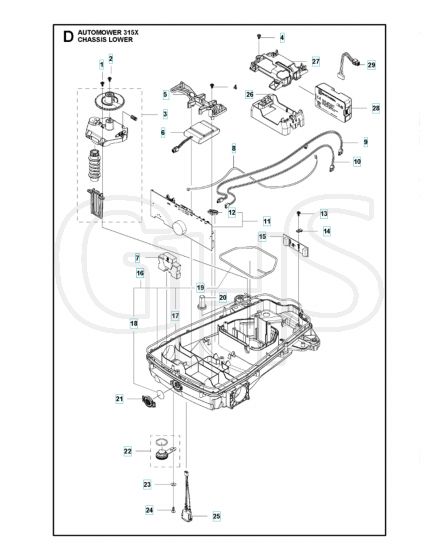

Chassis Lower - Parts Diagram

	Part No.	Details
3	HV501 10 66-01 Available to backorder	Cover Kitcover Kit	£36.35 £30.29
6	HV589 58 62-01 Available to backorder	Batteryup To Serial Number 2005Xxxxx	£117.96 £98.30
8	HV579 70 82-01 Available to backorder	Wiring Assyloom Loop Sensor	£14.10 £11.75
9	HV585 53 90-01 Available to backorder	Loomloom Charging	£16.66 £13.88
10	HV588 81 84-02 Available to backorder	Wiring Assyled Extension	£31.51 £26.26
11	HV592 85 18-01 Available to backorder	Printed Circuit Assymain Board	£273.60 £228.00
12	HV585 53 83-01 Available to backorder	Clipclips	£1.08 £0.90
14	HV579 52 94-01 Available to backorder	Clampclamp	£0.90 £0.75
15	HV592 85 27-01 Available to backorder	Printed Circuit Assysensor Board	£62.40 £52.00
16	HV587 44 92-02 Available to backorder	Chassis Kitup To Serial Number 1852Xxxxx	£66.12 £55.10
17	HV574 87 47-09 Available to backorder	Sealing Stripsealing Strip (1 Pcs. Ø5 mm)	£4.80 £4.00
18	HV577 75 37-01 Available to backorder	Filterair Filter	£61.44 £51.20
19	HV574 87 47-08 Available to backorder	Sealing Stripsealing Strip (1 Pcs. Ø5 mm)	£2.11 £1.76
20	HV586 34 26-01 Available to backorder	Columnpillar	£5.51 £4.59
21	HV586 03 89-01 Available to backorder	Covercover Filter	£4.74 £3.95
22	HV581 62 12-02 Available to backorder	Plug Kitplug Kit	£11.09 £9.24
23	HV734 11 37-41 Available to backorder	Washerwasher	£3.07 £2.56
24	HV574 45 01-01 Available to backorder	Screw Itxpantscrew	£1.79 £1.49
25	HV579 70 87-01 Available to backorder	Wiring Assyloom On-Off	£39.61 £33.01
29	HV591 20 36-01 Available to backorder	Wiring Assyfrom Serial Number 2006Xxxxx-	£11.94 £9.95
