Husqvarna Automower 310 - Chassis Upper 2016

Name: Husqvarna Automower 310 - Chassis Upper 2016
SKU: automower_310_chassis_upper_2016-group
Price: 0.85 GBP
Availability: InStock

Part No. automower_310_chassis_upper_2016-group

Description

Husqvarna Automower 310

Model Year -

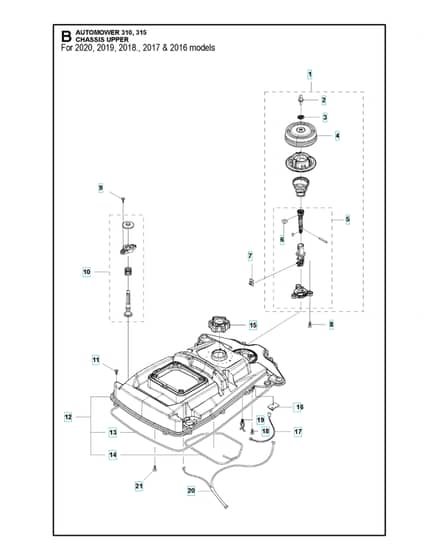

Chassis Upper 2016 - Parts Diagram

	Part No.	Details
1	HV581 62 09-03 Available to backorder	Joystick Kitjoystick Kit Front	£67.56 £56.30
2	HV580 52 67-01 Available to backorder	Studstud	£1.56 £1.30
3	HV579 52 57-01 Available to backorder	Washerwasher	£2.21 £1.84
4	HV579 47 46-01 Available to backorder	Bellowsbellows	£12.32 £10.27
5	HV587 44 88-02 Available to backorder	Joystick Kitjoystick Assy	£20.40 £17.00
6	HV503 22 66-01 Available to backorder	Square Nutsquare Nut	£2.86 £2.38
7	HV592 85 23-01 Available to backorder	Printed Circuit Assypcba Lift Sensor	£21.73 £18.11
8	HV575 54 33-14 In stock	Screwscrew	£1.93 £1.61
10	HV594 05 86-01 Available to backorder	Joystick Assyjoystick Kit Rear	£15.38 £12.82
12	HV587 44 89-02 Available to backorder	Chassis Kitchassis Kit	£75.60 £63.00
13	HV574 87 47-09 Available to backorder	Sealing Stripsealing Strip (1 Pcs. ¯5 mm)	£4.80 £4.00
14	HV574 87 47-08 Available to backorder	Sealing Strip	£2.11 £1.76
15	HV585 28 14-01 Available to backorder	Knobknob	£9.62 £8.02
17	HV585 20 85-01 Available to backorder	Loomloom Lift-Collision	£15.38 £12.82
19	HV580 68 29-01 Available to backorder	Holderholder Twist Lock	£1.02 £0.85
20	HV588 79 78-01 Available to backorder	Wiring Assyloom	£30.80 £25.67
21	HV574 45 01-01 Available to backorder	Screw Itxpantscrew	£1.79 £1.49
