Husqvarna Automower 310 - Chassis Upper 2015

Description

Husqvarna Automower 310

Model Year -

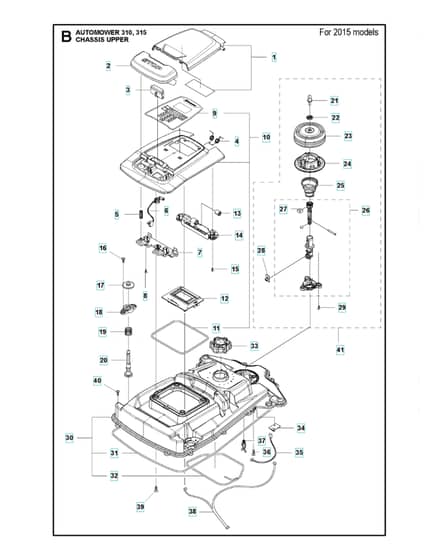

Chassis Upper 2015 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV587 65 13-01 Available to backorder	Hatch Kit	£36.22 £30.18
2	HV585 27 56-01 Available to backorder	Button	£21.36 £17.80
3	HV585 27 59-01 Available to backorder	Lock	£14.22 £11.85
4	HV585 25 54-01 Available to backorder	Torsion Spring	£3.24 £2.70
6	HV574 48 03-02 Available to backorder	Switch	£37.44 £31.20
7	HV585 27 57-01 Available to backorder	Support	£9.06 £7.55
10	HV587 44 90-01 Available to backorder	Cover Kit310	£73.24 £61.03
12	HV584 38 97-01 Available to backorder	Printed Circuit Assy310	£95.34 £79.45
13	HV580 35 23-02 Available to backorder	Damper	£7.92 £6.60
14	HV585 27 54-01 Available to backorder	Support	£9.06 £7.55
17	HV585 29 82-01 Available to backorder	Gasket	£5.08 £4.23
18	HV585 29 83-01 Available to backorder	Holder	£5.04 £4.20
19	HV585 29 81-01 Available to backorder	Spring	£3.76 £3.13
20	HV585 29 80-01 Available to backorder	Column	£5.56 £4.63
21	HV580 52 67-01 Available to backorder	Stud	£1.56 £1.30
22	HV579 52 57-01 Available to backorder	Washer	£2.34 £1.95
23	HV579 47 46-01 Available to backorder	Bellows	£12.78 £10.65
24	HV579 48 48-01 Available to backorder	Retainer	£5.82 £4.85
25	HV580 67 25-01 Available to backorder	Spring	£7.12 £5.93
26	HV587 44 88-02 Available to backorder	Joystick Kit	£21.36 £17.80
27	HV503 22 66-01 Available to backorder	Square Nut	£2.94 £2.45
28	HV579 66 90-01 Available to backorder	Printed Circuit Assy	£18.49 £15.41
29	HV575 54 33-14 In stock	Screw	£1.54 £1.28
30	HV587 44 89-01 Available to backorder	Chassis Kit	£61.46 £51.22
31	HV574 87 47-09 Available to backorder	Sealing Strip	£4.88 £4.07
32	HV574 87 47-08 Available to backorder	Sealing Strip	£2.20 £1.83
33	HV585 28 14-01 Available to backorder	Knob	£9.72 £8.10
35	HV585 20 85-01 Available to backorder	Loom	£15.54 £12.95
37	HV580 68 29-01 Available to backorder	Holder	£1.04 £0.87
38	HV585 20 86-01 Available to backorder	Loom	£30.40 £25.33
40	HV574 45 01-01 Available to backorder	Screw Itxpant	£1.82 £1.52
41	HV581 62 09-03 Available to backorder	Joystick Kit	£70.52 £58.77
