Husqvarna Automower 260 Acx - Chassis Lower

Name: Husqvarna Automower 260 Acx - Chassis Lower
SKU: automower_260_acx_chassis_lower-group
Price: 0.96 GBP
Availability: InStock

Part No. automower_260_acx_chassis_lower-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Automower 260 Acx - Chassis Lower

Description

Husqvarna Automower 260 Acx

Model Year -

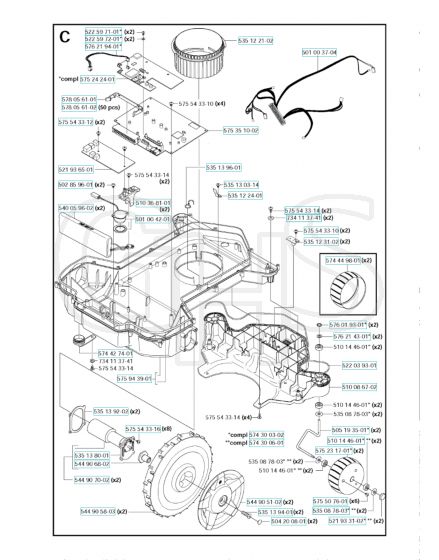

Chassis Lower - Parts Diagram

	Part No.	Details
501	HV501 00 37-04 Available to backorder	Main Wiring	£137.40 £114.50
501	HV501 00 42-01 Available to backorder	Loud Speaker	£28.92 £24.10
504	HV504 20 08-01 Available to backorder	Cover Washer	£4.36 £3.63
510	HV510 14 46-01 Available to backorder	Ball Bearing	£6.31 £5.26
521	HV521 93 65-01 Available to backorder	Printed Circuit Assy	£170.64 £142.20
521	HV521 93 31-02 Available to backorder	Cover Washer	£7.70 £6.42
522	HV522 03 93-01 Available to backorder	Sealing Ring	£2.11 £1.76
535	HV535 12 21-02 Available to backorder	Nut	£19.21 £16.01
535	HV535 13 94-01 Available to backorder	Screw Ihcsfm	£2.83 £2.36
535	HV535 13 03-14 Available to backorder	Screw Itxpant	£1.28 £1.07
535	HV535 13 96-01 Available to backorder	Cable Holder	£1.15 £0.96
535	HV535 08 78-03 Available to backorder	Washer	£2.30 £1.92
535	HV535 13 80-01 Available to backorder	Gable	£27.55 £22.96
540	HV540 05 96-02 Available to backorder	Battery	£156.00 £130.00
544	HV544 90 51-02 Available to backorder	Hub Cap	£12.32 £10.27
544	HV544 90 68-02 Available to backorder	Hub	£15.38 £12.82
574	HV574 44 98-01 Available to backorder	Wheel	£7.51 £6.26
574	HV574 30 06-01 Available to backorder	Kit	£28.24 £23.53
575	HV575 50 76-01 Available to backorder	Screw Itxpant	£1.28 £1.07
575	HV575 54 33-16 Available to backorder	Screw	£1.28 £1.07
575	HV575 23 17-01 Available to backorder	Wheel Assy	£21.73 £18.11
575	HV575 54 33-10 Available to backorder	Screw	£1.28 £1.07
575	HV575 94 39-01 Available to backorder	Chassis	£69.36 £57.80
575	HV575 35 10-02 Available to backorder	Printed Circuit Assy	£332.40 £277.00
575	HV575 54 33-14 In stock	Screw	£1.93 £1.61
576	HV576 21 94-01 Available to backorder	Wiring Assy	£30.48 £25.40
578	HV578 05 61-01 Available to backorder	Clip	£5.02 £4.18
734	HV734 11 37-41 Available to backorder	Washer	£3.07 £2.56
