Husqvarna Automower 220 Ac - Chassis Upper 2012-2015

Name: Husqvarna Automower 220 Ac - Chassis Upper 2012-2015
SKU: automower_220_ac_chassis_upper_2012_2015-group
Price: 1.49 GBP
Availability: InStock

Part No. automower_220_ac_chassis_upper_2012_2015-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Automower 220 Ac - Chassis Upper 2012-2015

Description

Husqvarna Automower 220 Ac

Model Year -

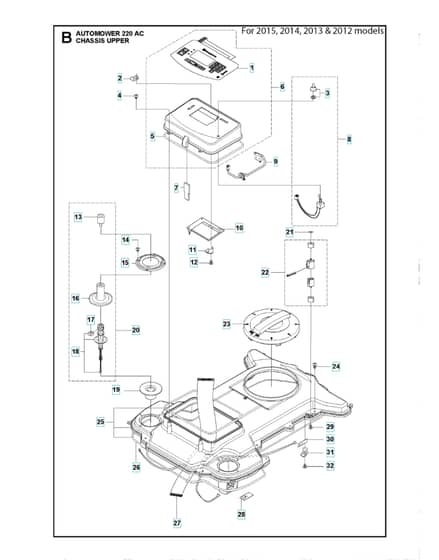

Chassis Upper 2012-2015 - Parts Diagram

	Part No.	Details
3	HV535 10 17-01 Available to backorder	Switch	£10.26 £8.55
5	HV574 87 47-02 Available to backorder	Sealing Stripø4mm	£2.11 £1.76
6	HV575 94 42-01 Available to backorder	Display Cover	£68.76 £57.30
7	HV535 14 47-01 Available to backorder	Filter	£3.92 £3.27
8	HV535 12 39-01 Available to backorder	Main Switch	£30.18 £25.15
9	HV577 59 23-01 Available to backorder	Switch Kit	£45.26 £37.72
10	HV540 06 03-01 Available to backorder	Display	£105.60 £88.00
13	HV577 67 06-01 Available to backorder	Damper	£6.40 £5.33
17	HV503 22 66-01 Available to backorder	Square Nut	£2.86 £2.38
18	HV501 12 26-02 Available to backorder	Joystick Kit	£13.63 £11.36
19	HV535 14 32-01 Available to backorder	Deflection Limiter	£8.34 £6.95
20	HV577 59 84-03 Available to backorder	Column	£44.22 £36.85
21	HV510 74 70-00 Available to backorder	Lockwasher	£2.42 £2.02
22	HV544 14 15-01 Available to backorder	Sensor	£33.96 £28.30
23	HV535 12 22-01 Available to backorder	Steering Wheel	£21.16 £17.63
24	HV574 45 01-01 Available to backorder	Screw Itxpant	£1.79 £1.49
25	HV575 94 38-01 Available to backorder	Chassis	£55.75 £46.46
26	HV574 87 47-01 Available to backorder	Sealing Stripø4mm	£4.36 £3.63
27	HV544 12 69-01 Available to backorder	Wiring Assy	£49.03 £40.86
29	HV535 07 60-02 Available to backorder	Screw	£1.79 £1.49
30	HV578 78 90-03 Available to backorder	Printed Circuit Assy	£18.85 £15.71
31	HV535 12 79-01 Available to backorder	Bracket	£6.01 £5.01
32	HV575 54 33-14 In stock	Screw	£1.93 £1.61
