Husqvarna Automower 105 - Chassis Upper

Name: Husqvarna Automower 105 - Chassis Upper
SKU: automower_105_chassis_upper-group
Price: 0.73 GBP
Availability: InStock

Description

Husqvarna Automower 105

Model Year -

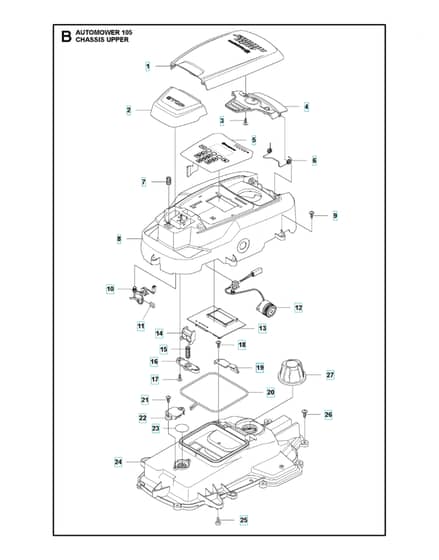

Chassis Upper - Parts Diagram

	Part No.	Details
1	HV588 79 76-03 Available to backorder	Covercover Height Adjustment. Grey	£34.28 £28.57
2	HV574 46 47-01 Available to backorder	Buttonstop Button	£11.64 £9.70
4	HV574 37 79-01 Available to backorder	Hingehinge. Height Adjustment Lid	£14.40 £12.00

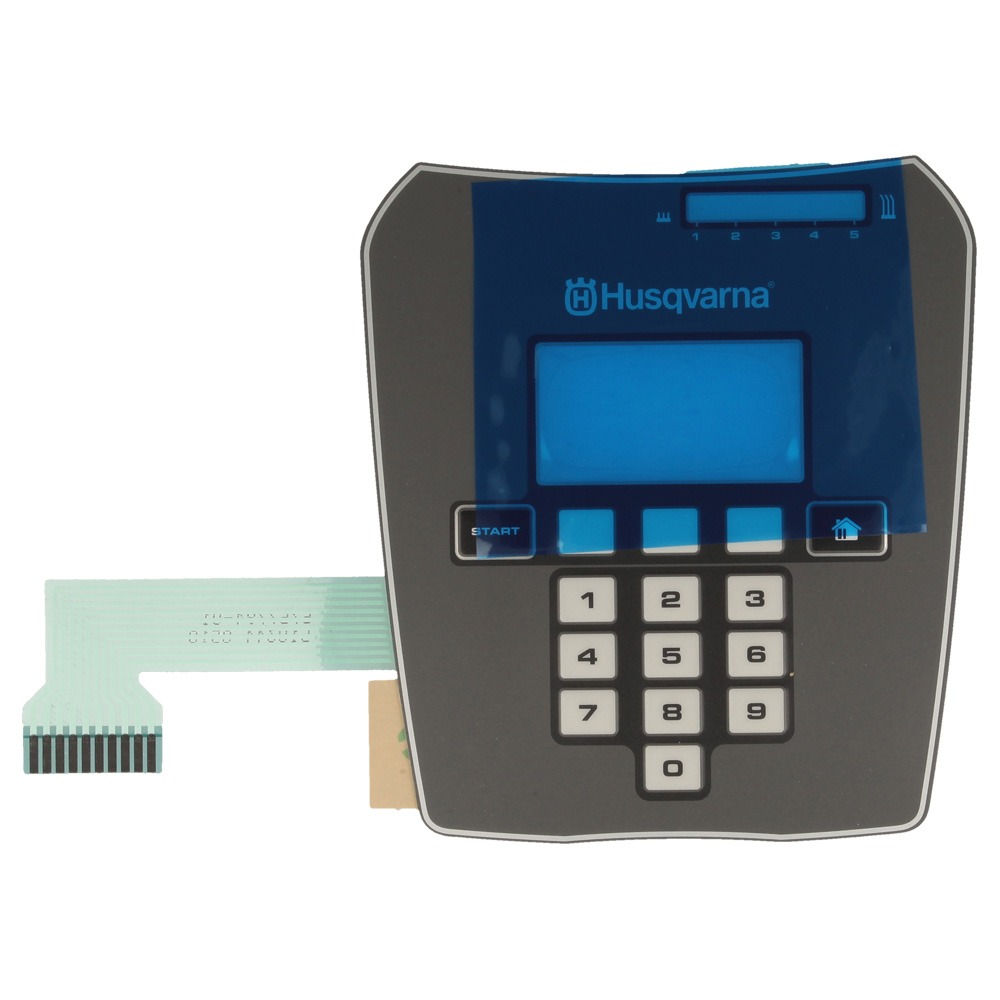

5	HV575 77 94-01 Available to backorder	Keyboardkeyboard	£53.28 £44.40
7	HV574 48 70-01 Available to backorder	Springspring. Stop Button	£3.66 £3.05
8	HV577 75 28-02 Available to backorder	Kitdisplay Cover Kit Incl. Sealing & Keypad	£110.62 £92.18
10	HV574 48 03-01 Available to backorder	Switchmicro Switch. Stop Button	£37.44 £31.20
11	HV535 08 98-01 Available to backorder	Clipclip. Stop Button	£1.28 £1.07
12	HV574 47 59-01 Available to backorder	Buzzerbuzzer. Display Cover	£29.20 £24.33
13	HV588 44 19-01 Available to backorder	Printed Circuit Assydisplay/Hmi. Circuit Board (From S/N 16010001-)	£82.74 £68.95
20	HV574 87 47-04 Available to backorder	Sealing Stripsealing Strip (1 Pcs. ¯4 mm)	£2.20 £1.83
21	HV575 54 33-14 In stock	Screwscrew. Grey (14 mm)	£1.54 £1.28
23	HV577 75 37-01 Available to backorder	Filterair Filter Kit (10 Pcs)	£64.20 £53.50
24	HV577 75 29-02 Available to backorder	Kitchassis Upper Kit Incl. Sealing & Air Filter	£64.68 £53.90
25	HV590 74 02-01 Available to backorder	Screwscrew	£0.88 £0.73
26	HV574 45 01-01 Available to backorder	Screw Itxpantscrew	£1.82 £1.52
27	HV579 74 24-01 Available to backorder	Knobknob. Kit Incl. Label	£17.46 £14.55
