Husqvarna Automower 105 - Chassis Lower

Name: Husqvarna Automower 105 - Chassis Lower
SKU: automower_105_chassis_lower-group
Price: 0.75 GBP
Availability: InStock

Part No. automower_105_chassis_lower-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Automower 105

Model Year -

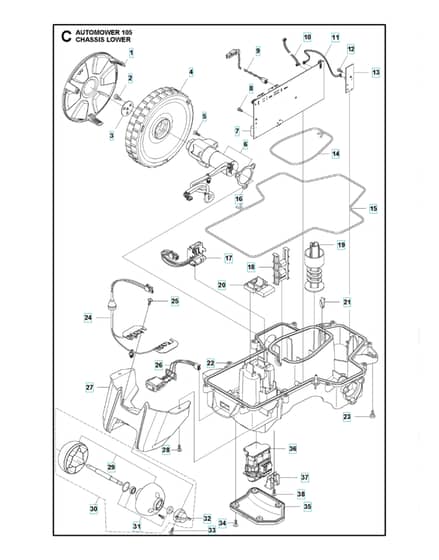

Chassis Lower - Parts Diagram

	Part No.	Details
1	HV575 43 08-01 Available to backorder	Hub Caphub Cap. Drive Wheel	£10.58 £8.82
2	HV576 21 39-02 Available to backorder	Screw Itxpanmscrew	£2.05 £1.71
3	HV577 09 32-01 Available to backorder	Washerwasher. Drive Wheel	£6.40 £5.33
4	HV574 46 51-04 Available to backorder	Wheelwheel. Drive Wheel	£34.08 £28.40
7	HV592 85 17-01 Available to backorder	Printed Circuit Assymain Circuit Board (Mcb) (From S/N 16010001-)	£222.96 £185.80
10	HV588 83 27-01 Available to backorder	Wiring Assyloom. Display (From S/N 16010001-)	£25.64 £21.37
11	HV588 90 12-01 Available to backorder	Wiring Assyloom. Loop And Lift Sensor (From S/N 16010001-)	£16.03 £13.36
12	HV535 13 03-10 Available to backorder	Screw Itxpantscrew (10 mm)	£1.28 £1.07
13	HV592 85 19-01 Available to backorder	Printed Circuit Assypcb Sensor Board	£55.80 £46.50
14	HV574 87 47-04 Available to backorder	Sealing Stripsealing Strip (1 Pcs. ¯4 mm)	£2.11 £1.76
15	HV574 87 47-03 Available to backorder	Sealing Stripsealing Strip. Chassis (1 Pcs. ¯4 mm)	£4.45 £3.71
16	HV574 37 37-01 Available to backorder	Gasketsealing/Gasket. Motor Flange	£4.63 £3.86
17	HV574 47 98-01 Available to backorder	Wiring Assyloom. Li-Ion Battery	£21.16 £17.63
21	HV577 10 32-01 Available to backorder	Locking Springlocking Spring	£3.46 £2.88
22	HV577 84 62-03 Available to backorder	Chassis	£63.84 £53.20
23	HV590 74 02-01 Available to backorder	Screwscrew	£0.90 £0.75
24	HV534 17 76-01 Available to backorder	Cable Assyloom. Charging Plate	£29.00 £24.17
25	HV575 52 95-02 Available to backorder	Screw Itxpanttscrew. Grey (14 mm)	£1.56 £1.30
26	HV579 70 87-01 Available to backorder	Wiring Assyswith On/Off With Seal	£39.61 £33.01
27	HV574 46 72-02 Available to backorder	Housinghousing. Rear Wheel	£35.26 £29.38
29	HV583 85 39-02 Available to backorder	Rear Wheelrear Wheel Kit	£19.03 £15.86
30	HV578 27 51-03 Available to backorder	Rear Wheelrear Wheel Kit Complete	£49.24 £41.03
31	HV578 27 52-01 Available to backorder	Bearing Kitbearing (X2). Sealing (X2). O-Ring (X1)	£18.00 £15.00
34	HV574 45 01-01 Available to backorder	Screw Itxpantscrew	£1.79 £1.49
35	HV574 46 73-01 Available to backorder	Covercover. Battery	£17.32 £14.43
36	HV589 58 61-01 Available to backorder	Batterybattery. Lithium 18 V	£112.44 £93.70
37	HV582 38 61-01 Available to backorder	Bracketbracket	£10.90 £9.08
38	HV575 54 33-14 In stock	Screwscrew. Grey (14 mm)	£1.93 £1.61
