Husqvarna 961430054 - Frame

Name: Husqvarna 961430054 - Frame
SKU: 961430054_2009_07_frame-group
Price: 0.64 GBP
Availability: InStock

Part No. 961430054_2009_07_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 961430054

Model Year - 2009-07

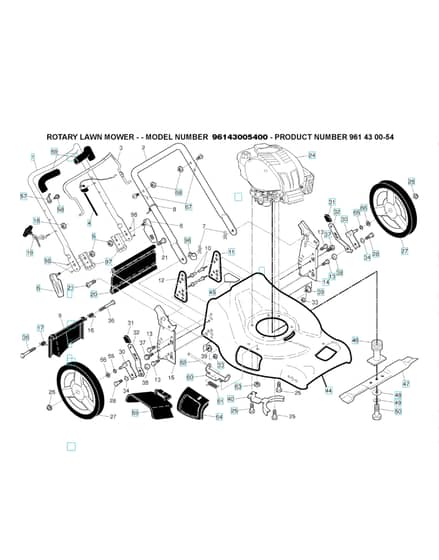

Frame - Parts Diagram

	Part No.	Details
4	HV532 41 53-50 In stock	Control Cable	£16.22 £13.52
5	HV532 19 17-30 Available to backorder	Nut	£2.30 £1.92
7	HV532 05 17-93 Available to backorder	Pin	£4.74 £3.95
13	HV817 06 04-10 Available to backorder	Screw	£2.30 £1.92
16	HV532 40 54-17 Available to backorder	Spring	£6.14 £5.12
17	HV532 40 54-18 Available to backorder	Spring	£6.14 £5.12
19	HV532 19 47-88 Available to backorder	Guide	£3.46 £2.88
26	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
28	HV532 40 16-38 Available to backorder	Bolt	£7.70 £6.42
31	HV532 70 10-37 Available to backorder	Knob	£5.02 £4.18
33	HV596 04 05-01 Available to backorder	Lock Nut	£2.03 £1.69
34	HV532 40 16-30 Available to backorder	Washer	£2.83 £2.36
36	HV532 18 41-93 Available to backorder	Bolt	£7.70 £6.42
37	HV874 78 05-12 Available to backorder	Screw	£2.99 £2.49
38	HV532 40 16-29 Available to backorder	Spacer	£2.69 £2.24
39	HV532 15 53-77 Available to backorder	Nut	£2.44 £2.03
40	HV532 42 57-11 Available to backorder	Belt Guard	£8.45 £7.04
46	HV583 47 80-01 Available to backorder	Blade Adapter / Pulley	£46.39 £38.66
47	HV532 40 67-12 Available to backorder	Mower Blade	£34.03 £28.36
48	HV532 85 10-74 Available to backorder	Washer	£4.97 £4.14
50	HV532 85 10-84 Available to backorder	Screw	£7.03 £5.86
58	HV532 75 06-34 Available to backorder	Screw	£1.56 £1.30
59	HV532 18 55-82 Available to backorder	Deflector	£36.76 £30.63
60	HV532 17 57-35 Available to backorder	Hinge	£8.34 £6.95
61	HV532 19 30-00 Available to backorder	Hinge	£5.77 £4.81
62	HV532 17 56-50 Available to backorder	Rod	£5.46 £4.55
64	HV532 18 55-76 Available to backorder	Door	£17.32 £14.43
65	HV532 19 74-80 Available to backorder	O-Ring	£3.82 £3.18
66	HV532 08 83-48 Available to backorder	Washer	£2.30 £1.92
67	HV532 19 92-55 Available to backorder	Pen	£2.56 £2.13
68	HV532 75 11-53 Available to backorder	Nut	£2.20 £1.83
96	HV532 19 79-91 Available to backorder	Clip	£0.77 £0.64
97	HV532 41 35-34 Available to backorder	Bracket	£10.26 £8.55
