Husqvarna 875 SERIES - Drive

Name: Husqvarna 875 SERIES - Drive
SKU: 875_series_2008_02_drive-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 875 SERIES

Model Year - 2008-02

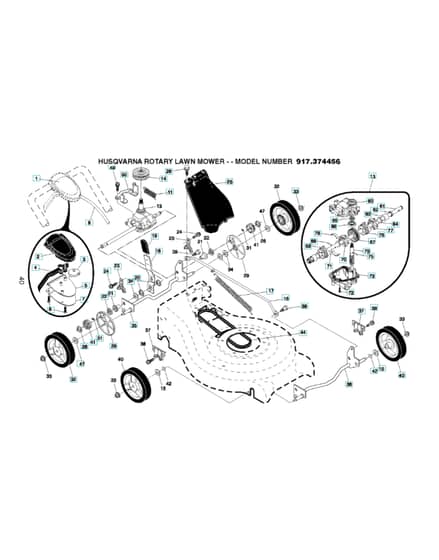

Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 40 62-60 Available to backorder	Cover	£25.88 £21.57
3	HV532 40 62-62 Available to backorder	Pulley	£13.12 £10.93
5	HV532 40 62-61 Available to backorder	Cover	£12.94 £10.78
6	HV532 18 16-98 Available to backorder	Screw	£1.82 £1.52
9	HV532 40 62-58 Available to backorder	Cable	£58.22 £48.52
11	HV532 40 65-58 Available to backorder	Spring	£3.62 £3.02
13	HV532 40 48-39 Available to backorder	Gear Case	£128.08 £106.73
16	HV532 40 71-47 Available to backorder	Rod	£44.00 £36.67
17	HV532 40 96-16 Available to backorder	Spring	£15.54 £12.95
18	HV532 41 88-35 Available to backorder	Spring	£16.18 £13.48
20	HV812 00 00-22 Available to backorder	Retainer Ring	£0.92 £0.77
21	HV532 40 48-38 Available to backorder	Bearing	£22.00 £18.33
23	HV532 16 11-18 Available to backorder	Retainer Drive Asm. Stmp..	£5.24 £4.37
24	HV817 06 04-10 Available to backorder	Screw	£2.34 £1.95
26	HV532 75 06-34 Available to backorder	Screw	£1.56 £1.30
28	HV812 00 00-58 Available to backorder	E-Clip	£0.77 £0.64
31	HV532 40 48-45 Available to backorder	Pawl. Drive	£6.30 £5.25
33	HV532 40 91-48 Available to backorder	Nut	£3.48 £2.90
34	HV532 85 12-26 Available to backorder	Washer	£4.14 £3.45
35	HV532 40 31-02 Available to backorder	Arm	£79.88 £66.57
36	HV532 40 71-75 Available to backorder	Shaft Assy	£80.44 £67.03
39	HV532 40 70-59 Available to backorder	Bolt	£4.26 £3.55
40	HV532 40 12-73 Available to backorder	Wheel Assy	£25.68 £21.40
41	HV532 40 48-35 Available to backorder	Pinion	£12.96 £10.80
42	HV532 19 74-80 Available to backorder	O-Ring	£3.84 £3.20
44	HV532 40 65-80 Available to backorder	V-Belt	£24.80 £20.67
47	HV532 06 77-25 Available to backorder	Washer	£9.06 £7.55
49	HV532 16 34-09 Available to backorder	Screw	£1.56 £1.30
62	HV532 18 35-08 Available to backorder	Seal. Output Shaft	£7.86 £6.55
63	HV532 18 35-11 Available to backorder	Bushing	£9.06 £7.55
67	HV532 41 27-42 Available to backorder	Gear	£16.38 £13.65
68	HV532 41 27-39 Available to backorder	Fixed Dog Clutch Lhlh	£5.88 £4.90
70	HV532 41 27-40 Available to backorder	Moveable Dog Clutch Lhlh	£7.20 £6.00
75	HV532 41 27-46 Available to backorder	Pin 3.50.337	£5.04 £4.20
76	HV532 41 27-43 Available to backorder	Clutchrh	£7.20 £6.00
77	HV532 41 27-44 Available to backorder	Fixed Dog Clutch Rhrh	£6.16 £5.13
