Husqvarna 7022R - Drive

Name: Husqvarna 7022R - Drive
SKU: 7022r_drive-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 7022R

Model Year -

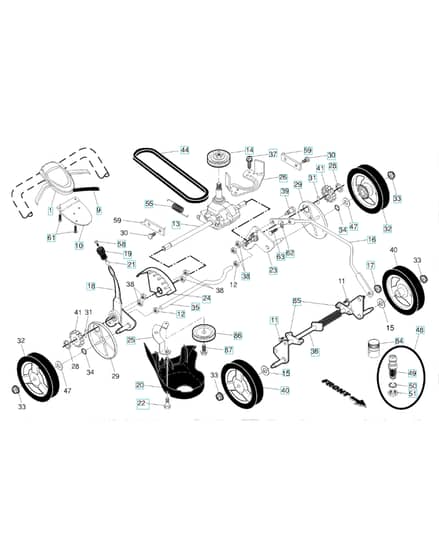

Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV581 95 05-05 Available to backorder	Controlincludes Cable	£70.12 £58.43
9	HV581 95 21-01 Available to backorder	Cable	£51.76 £43.13
10	HV532 43 27-90 Available to backorder	Bracket	£11.00 £9.17
15	HV532 08 83-48 Available to backorder	Washerfor 96143010600	£2.34 £1.95
17	HV532 75 11-53 Available to backorder	Nut	£2.72 £2.27
20	HV580 80 69-01 Available to backorder	Belt Cover	£25.22 £21.02
26	HV532 42 60-66 Available to backorder	Keeper	£14.78 £12.32
28	HV812 00 00-58 Available to backorder	E-Clip	£0.77 £0.64
29	HV581 84 04-01 Available to backorder	Dust Cover	£9.72 £8.10
30	HV817 00 05-10 Available to backorder	Bolt	£3.62 £3.02
31	HV532 40 48-45 Available to backorder	Pawl. Drive	£6.30 £5.25
32	HV581 68 51-01 Available to backorder	Wheel	£25.18 £20.98
33	HV532 40 91-48 Available to backorder	Nut	£3.48 £2.90
34	HV532 19 74-80 Available to backorder	O-Ring	£3.84 £3.20
37	HV532 16 34-09 Available to backorder	Screw	£1.56 £1.30
38	HV532 19 17-30 Available to backorder	Nut	£2.34 £1.95
39	HV532 40 70-59 Available to backorder	Bolt	£4.26 £3.55
41	HV532 40 48-35 Available to backorder	Pinion	£12.96 £10.80
47	HV532 06 77-25 Available to backorder	Washer	£9.06 £7.55
48	HV532 43 84-89 Available to backorder	Kit	£25.22 £21.02
55	HV581 35 13-01 Available to backorder	Spring	£3.76 £3.13
59	HV532 44 21-13 Available to backorder	Bracket	£5.58 £4.65
61	HV532 18 16-98 Available to backorder	Screw	£1.82 £1.52
62	HV532 19 79-91 Available to backorder	Clip	£0.77 £0.64
63	HV532 42 81-24 Available to backorder	Fastener	£7.86 £6.55
87	HV581 12 76-01 Available to backorder	Screw	£2.06 £1.72
