Husqvarna 7021KF - Drive

Name: Husqvarna 7021KF - Drive
SKU: 7021kf_drive-group
Price: 0.64 GBP
Availability: InStock

Description

Husqvarna 7021KF

Model Year - -

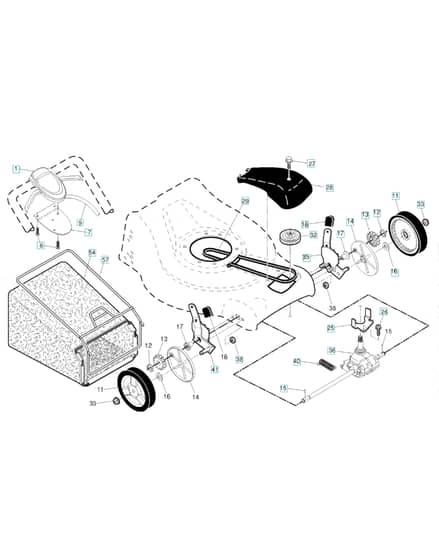

Drive - Parts Diagram

	Part No.	Details
6	HV532 18 16-98 Available to backorder	Screw	£1.82 £1.52
7	HV532 43 27-90 Available to backorder	Bracket	£11.00 £9.17
11	HV532 40 12-74 Available to backorder	Wheel	£25.44 £21.20
12	HV812 00 00-58 Available to backorder	E-Clip	£0.77 £0.64
13	HV532 40 38-49 Available to backorder	Pinion	£10.06 £8.38
14	HV581 84 04-01 Available to backorder	Dust Cover	£9.72 £8.10
15	HV532 40 48-45 Available to backorder	Pawl. Drive	£6.30 £5.25
16	HV532 06 77-25 Available to backorder	Washer	£9.06 £7.55
18	HV532 70 10-37 Available to backorder	Knob	£5.82 £4.85
25	HV532 43 17-11 Available to backorder	Bracket	£10.36 £8.63
26	HV532 16 34-09 Available to backorder	Screw	£1.56 £1.30
27	HV532 17 52-62 Available to backorder	Screw	£2.34 £1.95
28	HV532 43 26-64 Available to backorder	Coverincludes Mounting Screw & Pushnut	£23.58 £19.65
32	HV532 44 32-62 Available to backorder	Pulley	£19.00 £15.83
33	HV532 40 91-48 Available to backorder	Nut	£3.48 £2.90
36	HV532 40 48-33 Available to backorder	Gearcase Assembly. Complete	£116.03 £96.69
40	HV532 40 65-58 Available to backorder	Spring	£3.62 £3.02
41	HV532 43 84-85 Available to backorder	Adjusterfor 96143009100. 96143009101. 96143009100	£33.00 £27.50
