Husqvarna 6521RS - Product Complete 2

Name: Husqvarna 6521RS - Product Complete 2
SKU: 6521rs_2007_05_product_complete_2-group
Price: 0.64 GBP
Availability: InStock

Part No. 6521rs_2007_05_product_complete_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 6521RS

Model Year - 2007-05 - 96145000501

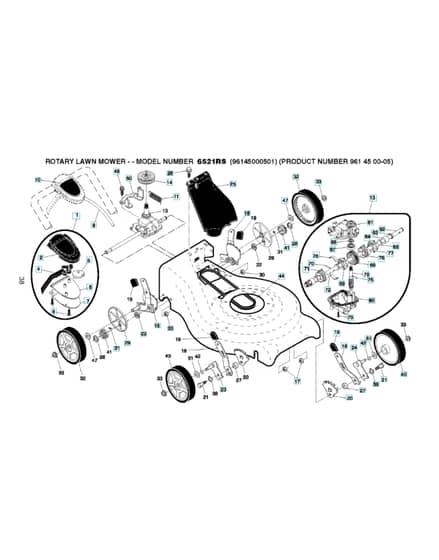

Product Complete 2 - Parts Diagram

	Part No.	Details
2	HV532 41 35-42 Available to backorder	Cover	£23.08 £19.23
3	HV532 40 62-62 Available to backorder	Pulley	£12.97 £10.81
5	HV532 41 35-41 Available to backorder	Cover	£19.21 £16.01
6	HV532 18 16-98 Available to backorder	Screw	£1.79 £1.49
7	HV532 40 07-23 Available to backorder	Bracket	£17.94 £14.95
9	HV532 40 62-58 Available to backorder	Cable	£57.67 £48.06
10	HV532 18 93-78 Available to backorder	Decal	£15.38 £12.82
11	HV532 40 65-58 Available to backorder	Spring	£3.74 £3.12
13	HV532 40 48-44 Available to backorder	Gear Case	£104.16 £86.80
21	HV532 40 16-38 Available to backorder	Bolt	£7.70 £6.42
23	HV532 40 66-90 Available to backorder	Axlerh	£13.37 £11.14
26	HV532 75 06-34 Available to backorder	Screw	£1.56 £1.30
27	HV532 40 16-29 Available to backorder	Spacer	£2.69 £2.24
28	HV812 00 00-58 Available to backorder	E-Clip	£0.77 £0.64
31	HV532 40 48-45 Available to backorder	Pawl. Drive	£6.52 £5.43
32	HV532 41 31-43 Available to backorder	Wheel.8X1.75.Rear	£20.93 £17.44
33	HV532 40 91-48 Available to backorder	Nut	£3.60 £3.00
39	HV532 40 16-30 Available to backorder	Washer	£2.83 £2.36
41	HV532 40 48-35 Available to backorder	Pinion	£13.08 £10.90
42	HV532 19 74-80 Available to backorder	O-Ring	£3.82 £3.18
44	HV532 40 65-80 Available to backorder	V-Belt	£24.58 £20.48
47	HV532 06 77-25 Available to backorder	Washer	£8.98 £7.48
49	HV532 16 34-09 Available to backorder	Screw	£1.56 £1.30
50	HV532 41 31-04 Available to backorder	Belt Keeper	£9.08 £7.57
51	HV532 08 83-48 Available to backorder	Washer	£2.30 £1.92
63	HV532 18 35-08 Available to backorder	Seal. Output Shaft	£7.79 £6.49
64	HV532 18 35-11 Available to backorder	Bushing	£8.98 £7.48
68	HV532 41 27-42 Available to backorder	Gear	£16.21 £13.51
69	HV532 41 27-39 Available to backorder	Fixed Dog Clutch Lhlh	£5.84 £4.87
71	HV532 41 27-40 Available to backorder	Moveable Dog Clutch Lhlh	£7.14 £5.95
75	HV532 41 27-46 Available to backorder	Pin 3.50.337	£5.02 £4.18
76	HV532 41 27-44 Available to backorder	Fixed Dog Clutch Rhrh	£6.10 £5.08
77	HV532 41 27-43 Available to backorder	Clutchrh	£7.14 £5.95
