Husqvarna 650RTT - 2006-12 - Tine Shield

Husqvarna 650RTT - 2006-12 - Tine Shield

Part No. 650rtt_2006_12_tine_shield-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 650RTT - 2006-12 - Tine Shield

Husqvarna 650RTT - 2006-12 - Tine Shield

Description

Husqvarna 650RTT

Model Year - 2006-12 - 96093000201

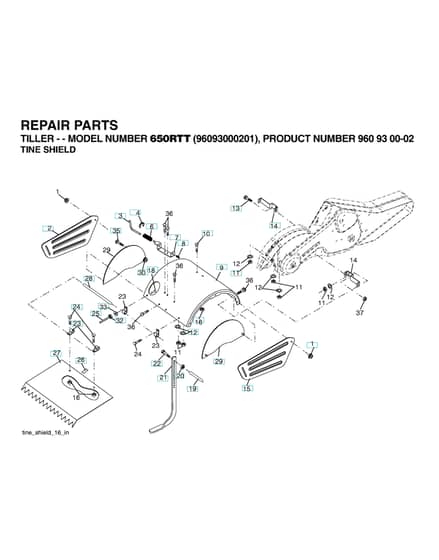

Tine Shield - Parts Diagram

Ref.		Img.	Part No.	Details
	-1		HV596 04 05-01 Available to backorder	Lock Nut		£2.03 £1.69
	1		HV873 90 05-00 Available to backorder	Nut		£2.69 £2.24
	1		HV532 18 08-47 Available to backorder	Bolt		£4.22 £3.52
	4		HV812 00 00-35 Available to backorder	Clip		£0.77 £0.64
	6		HV532 00 83-94 Available to backorder	Spring		£3.59 £2.99
	10		HV872 14 05-08 Available to backorder	Bolt		£4.50 £3.75
	11		HV873 22 05-00 Available to backorder	Nut		£2.30 £1.92
	12		HV810 04 05-00 Available to backorder	Washer		£1.78 £1.48
	18		HV872 04 04-10 Available to backorder	Bolt		£3.32 £2.77
	19		HV532 10 27-01 Available to backorder	Sleeve		£5.90 £4.92
	20		HV873 22 06-00 Available to backorder	Nut		£3.59 £2.99
	21		HV532 10 21-56 Available to backorder	Rod		£32.14 £26.78
	24		HV872 14 04-05 Available to backorder	Bolt		£2.56 £2.13
	26		HV532 10 92-27 Available to backorder	Pad		£7.70 £6.42
	33		HV596 02 98-01 Available to backorder	Washer		£2.44 £2.03
	35		HV596 03 94-01 Available to backorder	Bolt		£1.03 £0.86

Description

Husqvarna 650RTT

Model Year - 2006-12 - 96093000201

Tine Shield - Parts Diagram
