Husqvarna 592 XP G - 970493454 - Ignition System

Name: Husqvarna 592 XP G - 970493454 - Ignition System
SKU: 592_XP_G_970493454_GW_679918_Original_20file-group
Price: 1.3 GBP
Availability: InStock

Part No. 592_XP_G_970493454_GW_679918_Original_20file-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 592 XP G - 970493454 - Ignition System

Description

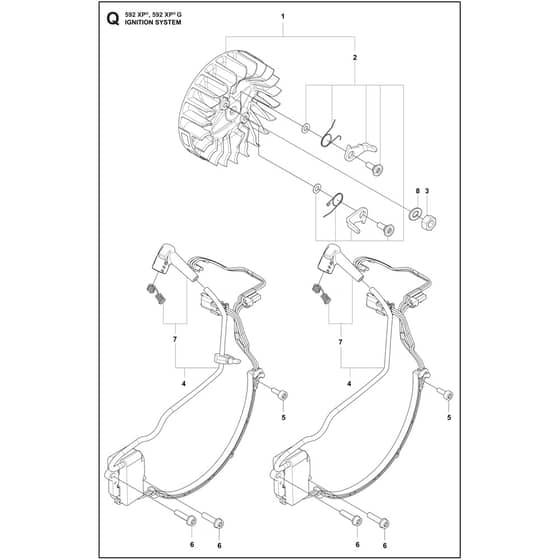

Husqvarna 592 XP G - 970493454 - Ignition System - Parts Diagram

	Part No.	Details
1	HV593 23 99-01 Available to backorder	Flywheel Assy (XP)	£64.68 £53.90
2	HV597 96 06-01 Available to backorder	Screw Kit	£1.88 £1.57
3	HV503 22 10-11 Available to backorder	Hexagon Nut	£2.44 £2.03
4	HV529 96 54-03 Available to backorder	Ignition Kit (without damper from s.n 20223900001 -)	£102.36 £85.30
4	HV529 96 54-02 Available to backorder	Ignition Kit (with damper - up to s.n 20223899999)	£95.76 £79.80
5	HV574 35 35-05 Available to backorder	Screw Itxscm	£1.56 £1.30
6	HV525 75 51-02 Available to backorder	Screw Itxscfm	£1.67 £1.39
7	HV531 24 15-01 Available to backorder	Spark Plug Cap (Including contact spring)	£8.36 £6.97
8	HV503 23 01-01 Available to backorder	Washer	£2.42 £2.02
