Husqvarna 592 XP G - 970493454 - Fuel Tank

Description

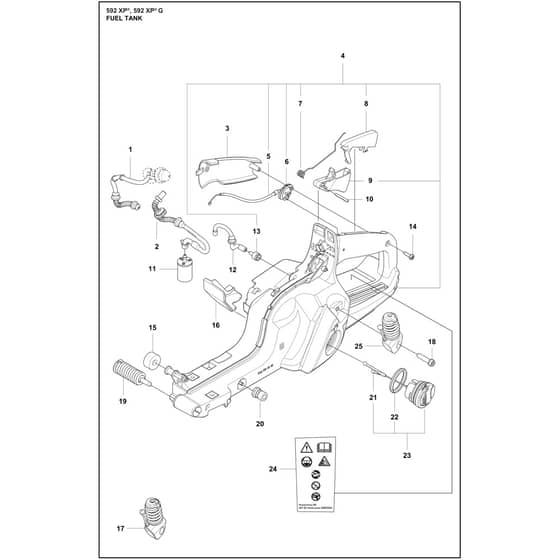

Husqvarna 592 XP G - 970493454 - Fuel Tank - Parts Diagram

	Part No.	Details
1	HV593 97 64-01 Available to backorder	Fuel Hose	£8.65 £7.21
2	HV529 57 82-02 In stock	Fuel Hose Assy (With magnet)	£11.54 £9.62
3	HV537 20 55-01 Available to backorder	Cover	£7.68 £6.40
4	HV597 96 03-01 Available to backorder	Fuel Tank Assy	£121.56 £101.30
5	HV593 24 63-01 Available to backorder	Throttle Cable Assy	£17.40 £14.50
6	HV537 20 85-01 Available to backorder	Lever	£7.06 £5.88
7	HV537 20 98-01 Available to backorder	Spring	£3.29 £2.74
8	HV537 20 84-01 Available to backorder	Throttle Lockout	£7.18 £5.98
9	HV537 20 83-01 Available to backorder	Throttle Trigger	£8.48 £7.07
10	HV720 12 40-20 In stock	Parallel Pin	£1.36 £1.13
11	HV503 44 32-03 In stock	Fuel Filter (18-40 µm (Blue))	£8.76 £7.30
12	HV593 97 65-01 Available to backorder	Fuel Hose	£6.64 £5.53
13	HV501 15 29-03 Available to backorder	Tank Vent Assy (Green)	£16.94 £14.12
14	HV525 88 74-02 In stock	Screw Citxpant	£1.25 £1.04
15	HV523 08 55-01 In stock	Deflection Limiter	£6.00 £5.00
16	HV593 25 70-01 Available to backorder	Wear Protection	£5.20 £4.33
17	HV593 25 56-03 Available to backorder	Antivibration Element (- up to s.n 20233714747)	£22.32 £18.60
18	HV525 79 81-03 Available to backorder	Screw Itxscft	£0.95 £0.79
19	HV593 25 55-01 Available to backorder	Antivibration Element	£24.31 £20.26
20	HV501 00 76-01 Available to backorder	Support	£1.94 £1.62
21	HV503 57 89-01 Available to backorder	Holder	£5.42 £4.52
22	HV537 21 50-01 Available to backorder	Gasket	£5.32 £4.43
23	HV522 62 00-01 Available to backorder	Tank Cap Assy	£8.68 £7.23
24	HV582 79 41-05 Available to backorder	Label	£3.54 £2.95
25	HV593 25 56-02 Available to backorder	Antivibration Element (From s.n 20233714748 -)	£20.42 £17.02
