Husqvarna 592 XP G - 970493454 - Crankcase

Name: Husqvarna 592 XP G - 970493454 - Crankcase
SKU: 592_XP_G_970493454_H_592XP_2c_20XPG_CRANKCASE_Original_20file-gr
Price: 0.64 GBP
Availability: InStock

Part No. 592_XP_G_970493454_H_592XP_2c_20XPG_CRANKCASE_Original_20file-gr

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 592 XP G - 970493454 - Crankcase

Description

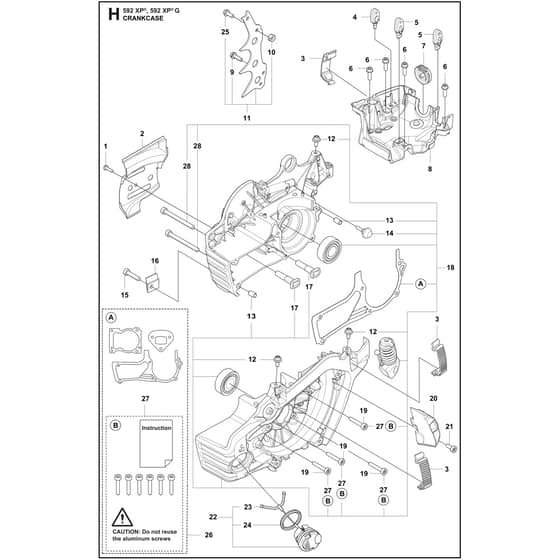

Husqvarna 592 XP G - 970493454 - Crankcase - Parts Diagram

	Part No.	Details
1	HV526 22 18-01 Available to backorder	Screw Citxpant	£1.24 £1.03
2	HV575 61 63-01 Available to backorder	Chain Guide Plate	£8.69 £7.24
3	HV595 30 30-05 Available to backorder	Snap Locking	£11.21 £9.34
4	HV597 90 97-01 Available to backorder	Damper	£5.92 £4.93
5	HV595 01 39-01 Available to backorder	Damper	£5.92 £4.93
6	HV575 88 57-03 Available to backorder	Screw Itxscfm	£0.77 £0.64
7	HV595 84 53-01 Available to backorder	Grommet	£4.37 £3.64
8	HV599 78 09-01 Available to backorder	Carburettor Area Base	£33.86 £28.22
9	HV525 75 51-05 In stock	Screw Itxscfm	£1.63 £1.36
10	HV503 22 24-01 Available to backorder	Lock Nut	£1.87 £1.56
11	HV529 53 69-01 Available to backorder	Spike	£10.03 £8.36
12	HV525 82 44-01 Available to backorder	Screw Itxscm	£1.91 £1.59
13	HV593 80 60-01 In stock	Guide Bushing	Was £5.60 £4.67 Special Price £1.80 £1.50
14	HV503 84 61-01 Available to backorder	Buffer	Was £5.90 £4.92 Special Price £2.39 £1.99
15	HV544 21 84-01 Available to backorder	Screw Itxscm	£2.71 £2.26
16	HV537 37 79-02 Available to backorder	Chain Catcher	£5.00 £4.17
17	HV537 05 13-01 Available to backorder	Bar Bolt	£5.51 £4.59
18	HV597 96 08-05 Available to backorder	Crankcase Kit (1pcs of 593255602 Anti vibration included)	£321.96 £268.30
19	HV503 21 53-30 Available to backorder	Screw Itxscm (Steel screw)	£2.69 £2.24
20	HV593 23 51-01 Available to backorder	Air Nozzle	£4.92 £4.10
21	HV574 35 35-05 Available to backorder	Screw Itxscm	£1.56 £1.30
22	HV522 62 00-01 Available to backorder	Tank Cap Assy	£8.68 £7.23
23	HV503 57 89-01 Available to backorder	Holder	£5.42 £4.52
24	HV537 21 50-01 Available to backorder	Gasket	£5.32 £4.43
25	HV525 75 51-01 Available to backorder	Screw Itxscfm	£1.97 £1.64
26	HV597 93 90-02 Available to backorder	Gasket Kit (Gaskets and 6pcs Aluminum screws)	£6.91 £5.76
27	HV529 86 72-01 Available to backorder	Screw Kit (6pcs Aluminum screws (Original))	£2.00 £1.67
28	HV503 21 53-75 Available to backorder	Screw	£3.46 £2.88
