Husqvarna 592 XP G - 970493454 - Clutch And Oil Pump

Name: Husqvarna 592 XP G - 970493454 - Clutch And Oil Pump
SKU: 592_XP_G_970493454_PG_693941_HighResPng-group
Price: 0.63 GBP
Availability: InStock

Part No. 592_XP_G_970493454_PG_693941_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 592 XP G - 970493454 - Clutch And Oil Pump

Description

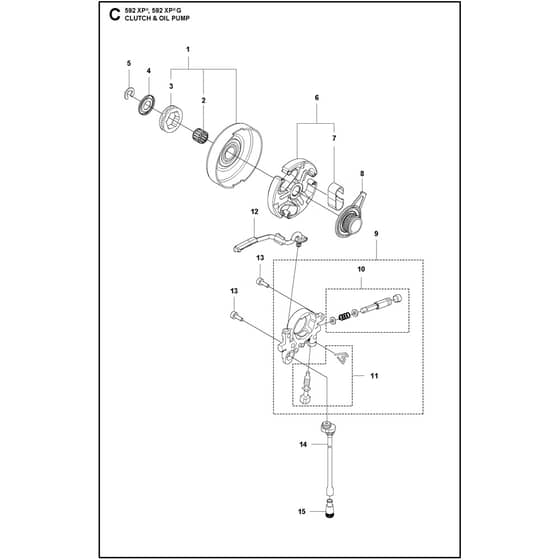

Husqvarna 592 XP G - 970493454 - Clutch And Oil Pump - Parts Diagram

	Part No.	Details
1	HV598 87 85-02 Available to backorder	Clutch Drum Assy (0.404" - 7T)	£57.14 £47.62
2	HV503 43 20-01 Available to backorder	Needle Holder	£10.51 £8.76
3	HV501 59 79-02 Available to backorder	Rim Sprocket (0.404" - 7T)	£14.24 £11.87
3	HV501 59 80-02 Available to backorder	Rim Sprocket (3.8" - 7T)	£14.24 £11.87
4	HV503 75 24-01 Available to backorder	Washer	£2.94 £2.45
5	HV503 27 21-01 In stock	E-Clip	£0.76 £0.63
7	HV599 20 03-01 Available to backorder	Clutch Spring	£5.71 £4.76
8	HV582 27 01-05 Available to backorder	Pump Pinion	£10.88 £9.07
9	HV589 02 84-04 Available to backorder	Oil Pump Assy (GREY)	£31.26 £26.05
10	HV590 11 97-02 Available to backorder	Pump Piston	£16.94 £14.12
11	HV590 12 01-01 Available to backorder	Oil Pump	£6.34 £5.28
12	HV576 98 74-02 Available to backorder	Oil Pressure Hose	£13.68 £11.40
13	HV526 81 81-02 Available to backorder	Screw Itxscm	£0.95 £0.79
14	HV588 40 47-02 Available to backorder	Oil Hose	£6.44 £5.37
15	HV501 54 41-02 Available to backorder	Oil Screen	£13.33 £11.11
