Husqvarna 578 BTF - Throttle Controls

Name: Husqvarna 578 BTF - Throttle Controls
Brand: Bosch
SKU: 578 BTF - Throttle Controls-group
Price: 1.07 GBP
Availability: InStock

Part No. 578 BTF - Throttle Controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

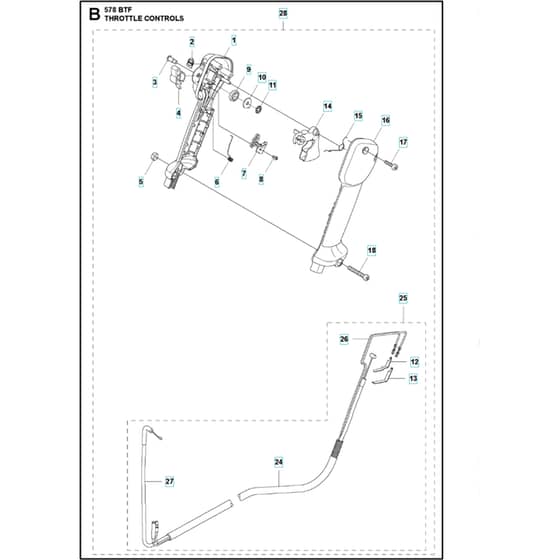

Husqvarna 578 BTF - Throttle Controls - Parts Diagram

	Part No.	Details
1	HV502 24 48-01 In stock	Handle Half	Was £22.20 £18.50 Special Price £5.99 £4.99
3	HV537 14 12-03 Available to backorder	Shaft Pivot	£6.48 £5.40
4	HV502 24 55-01 Available to backorder	Control	£4.63 £3.86
6	HV505 56 79-01 Available to backorder	Spring	£3.32 £2.77
8	HV503 21 29-06 Available to backorder	Screw Ccrpant	£1.28 £1.07
11	HV735 58 35-01 Available to backorder	Washer	£2.30 £1.92
12	HV537 22 63-01 Available to backorder	Connector	£3.97 £3.31
13	HV537 22 62-01 Available to backorder	Connector	£3.97 £3.31
14	HV502 24 54-01 Available to backorder	Trigger	£8.34 £6.95
15	HV537 17 42-01 Available to backorder	Spring Throttle Trig	£3.12 £2.60
16	HV502 24 49-01 Available to backorder	Handle Half	£25.64 £21.37
17	HV505 29 12-01 Available to backorder	Screw	£1.39 £1.16
18	HV505 29 08-01 Available to backorder	Screw	£2.56 £2.13
24	HV577 75 69-01 Available to backorder	Tube	£8.98 £7.48
25	HV576 78 56-01 Available to backorder	Wiring Assy	£69.24 £57.70
26	HV576 78 57-01 Available to backorder	Cord	£32.70 £27.25
27	HV576 78 58-01 In stock	Cable	£31.38 £26.15
