Husqvarna 576XPAUTOTUNE - Clutch & Oil Pump

Husqvarna 576XPAUTOTUNE - Clutch & Oil Pump

Part No. 576xpautotune_clutch_oil_pump-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 576XPAUTOTUNE - Clutch & Oil Pump

Husqvarna 576XPAUTOTUNE - Clutch & Oil Pump

Description

Husqvarna 576XPAUTOTUNE

Model Year -

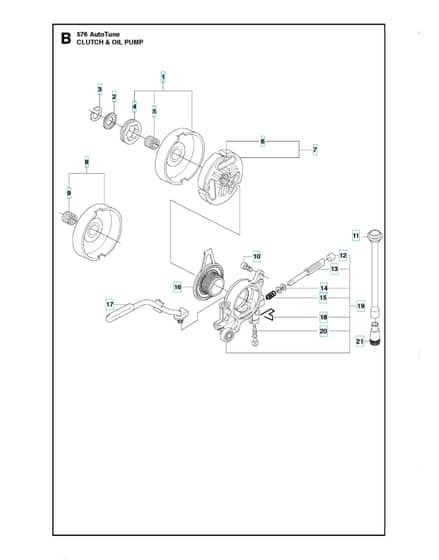

Clutch & Oil Pump - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV504 54 72-03 Available to backorder	Clutch Drum Assy3/8 X 8T		£62.04 £51.70
	1		HV504 54 72-02 Available to backorder	Clutch Drum Assy3/8 X 7T		£57.74 £48.12
	2		HV503 75 24-01 Available to backorder	Washer		£2.94 £2.45
	3		HV503 27 21-01 In stock	E-Clip		£0.76 £0.63
	4		HV501 59 80-02 Available to backorder	Rim3/8 X 7T		£14.24 £11.87
	4		HV505 30 36-61 Available to backorder	Rim3/8 X 8T		£14.52 £12.10
	7		HV586 79 84-02 Available to backorder	Clutch Assy		£73.80 £61.50
	8		HV503 86 17-03 In stock	Clutch Drum Assy		£56.30 £46.92
	9		HV503 43 20-01 Available to backorder	Needle Holder		£10.51 £8.76
	11		HV501 89 53-01 Available to backorder	Oil Hose		£13.69 £11.41
	12		HV503 62 49-01 Available to backorder	Sealing Plug		£5.03 £4.19
	13		HV503 52 15-01 Available to backorder	Pump Piston		£18.38 £15.32
	14		HV503 23 00-04 Available to backorder	Washer		£2.30 £1.92
	15		HV501 61 58-01 Available to backorder	Spring		£3.32 £2.77
	16		HV537 20 78-04 Available to backorder	Pump Pinion		£10.98 £9.15
	17		HV537 20 91-01 Available to backorder	Oil Pressure Hose		£13.91 £11.59
	18		HV503 81 30-01 Available to backorder	Spring		£3.32 £2.77
	19		HV503 52 13-03 Available to backorder	Oil Pump Assy		£99.84 £83.20
	20		HV503 81 13-01 Available to backorder	Screw		£2.56 £2.13
	21		HV501 54 41-02 Available to backorder	Oil Screen		£13.33 £11.11

Description

Husqvarna 576XPAUTOTUNE

Model Year -

Clutch & Oil Pump - Parts Diagram
