Husqvarna 576XPAUTOTUNE - Carburetor & Air Filter

Description

Husqvarna 576XPAUTOTUNE

Model Year -

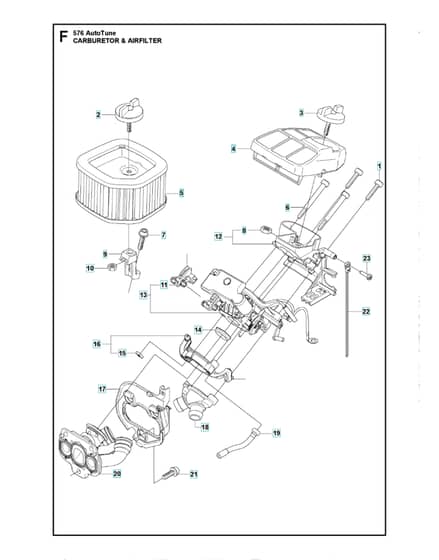

Carburetor & Air Filter - Parts Diagram

	Part No.	Details
2	HV537 21 32-01 Available to backorder	Knob	£5.88 £4.90
3	HV537 21 32-09 Available to backorder	Knob	£6.26 £5.22
4	HV576 48 63-06 Available to backorder	Air Filterfelt S/N From 2012200001 -	£39.50 £32.92

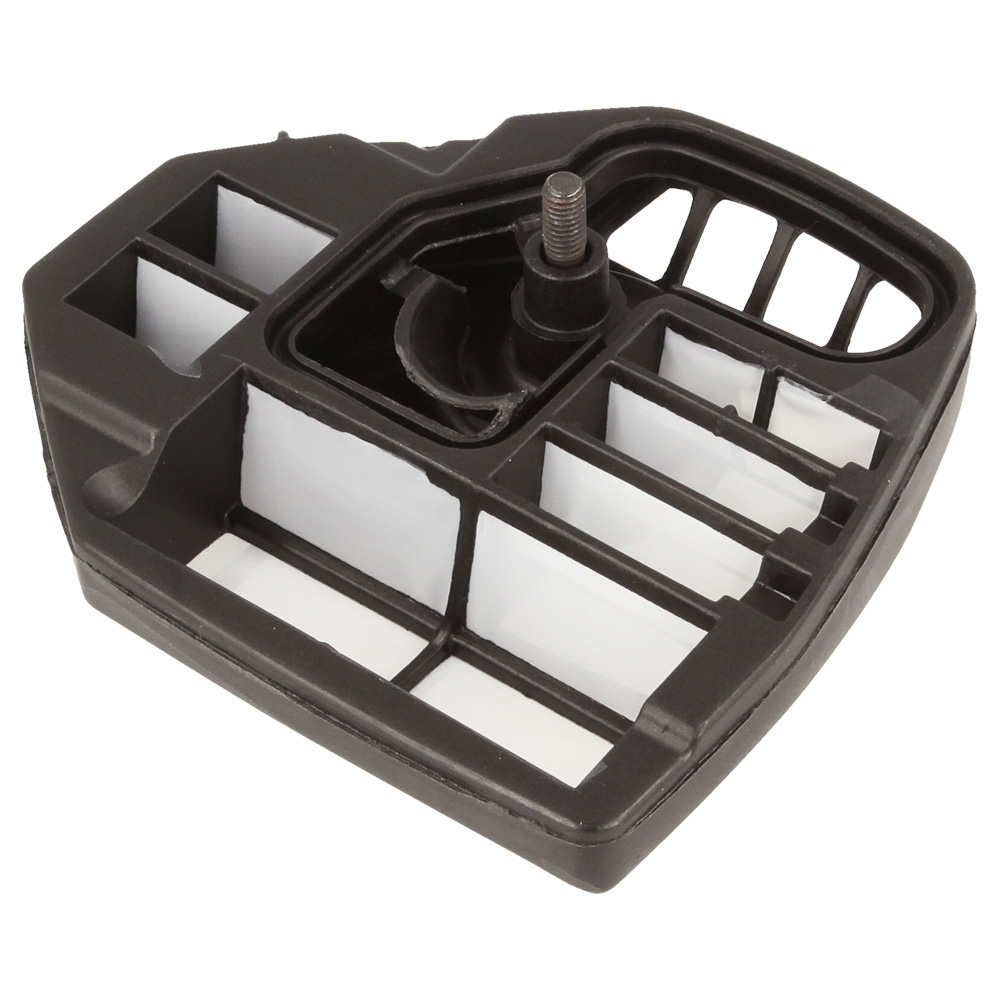

4	HV576 48 63-04 Available to backorder	Air Filter80 My S/N From 2012200001 -	£35.78 £29.82
4	HV576 48 63-05 Available to backorder	Air Filter44 My S/N From 2012200001 -	£36.76 £30.63
5	HV544 85 11-03 Available to backorder	Air Filter44 My	£54.49 £45.41
5	HV544 85 11-01 Available to backorder	Air Filterfelt	£42.89 £35.74
5	HV544 85 11-02 Available to backorder	Air Filter80 My	£47.38 £39.48
6	HV503 20 39-01 Available to backorder	Screw Ihscm	£2.92 £2.43
7	HV503 21 26-16 Available to backorder	Screw Ihpanm	£1.79 £1.49
9	HV537 21 04-01 Available to backorder	Adapter	£4.42 £3.68
10	HV731 23 14-01 In stock	Hexagon Nut	£1.30 £1.08
11	HV544 38 76-01 Available to backorder	Throttle Lever Assy	£31.72 £26.43
12	HV537 20 50-01 Available to backorder	Filter Holder	£10.26 £8.55
13	HV581 27 97-01 Available to backorder	Carburettorzama C1M-El 40H	£166.20 £138.50
14	HV537 20 46-01 Available to backorder	Support Sleeve	£5.63 £4.69
15	HV503 22 65-03 Available to backorder	Square Nut	£2.71 £2.26
16	HV537 20 45-01 Available to backorder	Flange	£10.37 £8.64
17	HV537 20 47-01 Available to backorder	Insulation Wall	£24.36 £20.30
18	HV537 20 49-01 Available to backorder	Flange	£9.95 £8.29
19	HV537 20 37-01 Available to backorder	Impulse Hose	£9.36 £7.80
20	HV585 48 43-01 Available to backorder	Inlet Pipecold Resistant Spare Part Only	£79.32 £66.10
20	HV537 20 43-01 Available to backorder	Inlet Pipe	£39.10 £32.58
22	HV537 23 78-01 Available to backorder	Tie Wrap	£0.77 £0.64
23	HV503 21 70-16 Available to backorder	Screw Ccrpant	£1.56 £1.30
