Husqvarna 575XP - Carburetor

Name: Husqvarna 575XP - Carburetor
SKU: 575xp_carburetor-group
Price: 0.85 GBP
Availability: InStock

Part No. 575xp_carburetor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 575XP

Model Year -

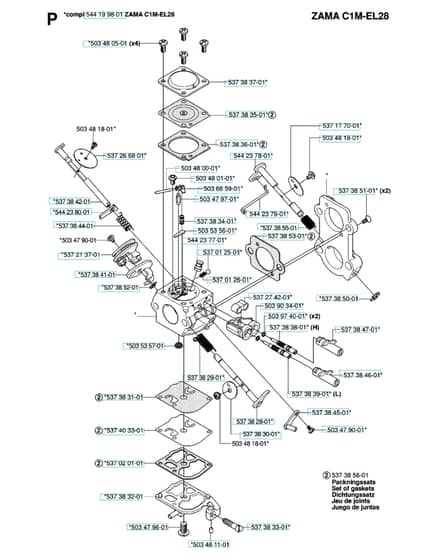

Carburetor - Parts Diagram

	Part No.	Details
503479001	HV503 47 90-01 Available to backorder	Screw	£1.28 £1.07
503479701	HV503 47 97-01 Available to backorder	Valve	£14.81 £12.34
503480001	HV503 48 00-01 Available to backorder	Pin Retaining Screw	£4.64 £3.87
503480501	HV503 48 05-01 Available to backorder	Screw	£1.56 £1.30
503481101	HV503 48 11-01 Available to backorder	Piece	£6.36 £5.30
503481801	HV503 48 18-01 Available to backorder	Screw	£1.28 £1.07
503535601	HV503 53 56-01 Available to backorder	Plug Welch	£5.17 £4.31
503535701	HV503 53 57-01 Available to backorder	Strainer	£5.44 £4.53
503665901	HV503 66 59-01 Available to backorder	Lever	£5.63 £4.69
503903401	HV503 90 34-01 Available to backorder	Retainer	£4.64 £3.87
503974001	HV503 97 40-01 Available to backorder	Washer	£2.30 £1.92
537020101	HV537 02 01-01 Available to backorder	Gasket	£4.63 £3.86
537177001	HV537 17 70-01 Available to backorder	Valve	£20.44 £17.03
537213701	HV537 21 37-01 Available to backorder	Lever	£6.48 £5.40
537274201	HV537 27 42-01 Available to backorder	Boot	£4.56 £3.80
537383101	HV537 38 31-01 Available to backorder	Diaphragm Pump	£12.70 £10.58
537383301	HV537 38 33-01 Available to backorder	Screw	£1.79 £1.49
537384201	HV537 38 42-01 Available to backorder	Shaft Assy	£24.68 £20.57
537385001	HV537 38 50-01 Available to backorder	Clip	£1.15 £0.96
537385101	HV537 38 51-01 Available to backorder	Screw	£1.13 £0.94
537385201	HV537 38 52-01 Available to backorder	Clip	£1.02 £0.85
537385301	HV537 38 53-01 Available to backorder	Gasket	£4.63 £3.86
537403301	HV537 40 33-01 Available to backorder	Diaphragm	£14.32 £11.93
544199801	HV544 19 98-01 Available to backorder	Carburettor	£126.84 £105.70
544237701	HV544 23 77-01 Available to backorder	Nozzle Assy	£17.62 £14.68
