Husqvarna 572 XP G - 966733420 - Heated Handles

Name: Husqvarna 572 XP G - 966733420 - Heated Handles
SKU: 572_XP_G_966733420_UI_090155_HighResPng-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 572 XP G - 966733420 - Heated Handles

Description

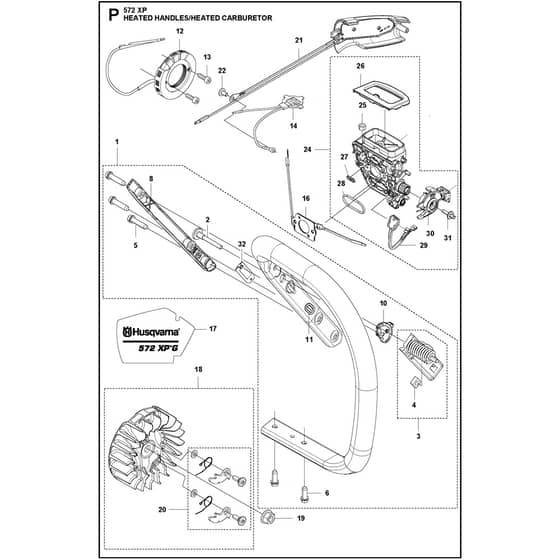

Husqvarna 572 XP G - 966733420 - Heated Handles - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV579 48 43-02 Available to backorder	Front Handle Assy	£181.32 £151.10
2	HV504 06 45-01 Available to backorder	Screw Itxpanm	£1.28 £1.07
3	HV589 69 91-02 Available to backorder	Antivibration Element (Hard)	£25.20 £21.00
3	HV589 69 91-01 Available to backorder	Antivibration Element	£21.02 £17.52
4	HV503 22 66-01 Available to backorder	Square Nut	£2.94 £2.45
5	HV525 79 81-03 Available to backorder	Screw Itxscft	£0.92 £0.77
6	HV575 88 57-03 Available to backorder	Screw Itxscfm	£0.77 £0.64
8	HV582 65 42-01 Available to backorder	Cover	£5.44 £4.53
10	HV537 25 25-01 Available to backorder	Contact Plate	£7.76 £6.47
11	HV537 08 83-01 Available to backorder	Grommet	£4.54 £3.78
12	HV590 68 81-01 Available to backorder	Generator Stator	£171.36 £142.80
13	HV526 81 81-02 Available to backorder	Screw Itxscm	£0.92 £0.77
14	HV590 68 83-01 Available to backorder	Thermostat Assy	£82.52 £68.77
16	HV588 16 86-01 Available to backorder	Foil Element	£106.36 £88.63
17	HV575 39 64-02 Available to backorder	Decal	£3.24 £2.70
18	HV576 77 72-02 Available to backorder	Flywheel Assy	£118.02 £98.35
19	HV503 22 04-01 In stock	Nut	£2.39 £1.99
20	HV590 28 13-01 Available to backorder	Pawl (Kit)	£14.64 £12.20
21	HV589 69 89-01 Available to backorder	Handle Insert	£16.18 £13.48
22	HV526 22 18-01 Available to backorder	Screw Citxpant	£1.22 £1.02
24	HV577 41 90-06 Available to backorder	Inlet Elbow (Heated)	£37.00 £30.83
25	HV731 23 14-01 Available to backorder	Hexagon Nut	£1.51 £1.26
26	HV589 37 84-01 Available to backorder	Sealing	£8.54 £7.12
27	HV525 61 92-01 Available to backorder	Sealing	£2.40 £2.00
28	HV525 61 90-01 Available to backorder	Sealing	£6.74 £5.62
29	HV577 53 64-02 Available to backorder	Wiring Assy	£7.57 £6.31
30	HV510 01 72-02 Available to backorder	Choke Control Assy	£9.72 £8.10
31	HV505 15 62-01 Available to backorder	Screw	£1.94 £1.62
32	HV590 46 91-01 Available to backorder	Protection	£1.94 £1.62
