Husqvarna 572 XP G - 966733420 - Carburetor And Air Filter

Name: Husqvarna 572 XP G - 966733420 - Carburetor And Air Filter
SKU: 572_XP_G_966733420_JN_463386_HighResPng-group
Price: 0.6 GBP
Availability: InStock

Part No. 572_XP_G_966733420_JN_463386_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 572 XP G - 966733420 - Carburetor And Air Filter

Description

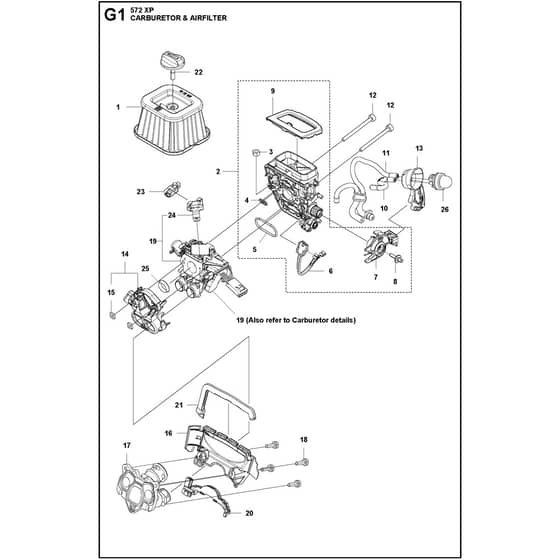

Husqvarna 572 XP G - 966733420 - Carburetor And Air Filter - Parts Diagram

	Part No.	Details
1	HV596 76 23-01 Available to backorder	Air Filter (Non-Woven - Clear)	£36.04 £30.03
1	HV596 76 23-02 Available to backorder	Air Filter (Nylon Mesh - 25 Micron Rating - Yellow)	£32.63 £27.19
1	HV596 76 23-03 Available to backorder	Air Filter (Nylon Mesh - 64 Micron Rating - Black)	£33.86 £28.22
2	HV577 41 90-05 Available to backorder	Inlet Elbow (Std)	£36.65 £30.54
2	HV577 41 90-06 Available to backorder	Inlet Elbow (Heated)	£36.65 £30.54
3	HV731 23 14-01 In stock	Hexagon Nut	£1.30 £1.08
4	HV525 61 92-01 In stock	Sealing	£2.40 £2.00
5	HV525 61 90-01 Available to backorder	Sealing	£6.67 £5.56
6	HV577 53 64-02 Available to backorder	Wiring Assy	£6.14 £5.12
7	HV510 01 72-02 Available to backorder	Choke Control Assy	£9.62 £8.02
8	HV505 15 62-01 Available to backorder	Screw	£1.94 £1.62
9	HV589 37 84-01 Available to backorder	Sealing	£8.47 £7.06
10	HV523 05 68-01 Available to backorder	Fuel Hose	£4.61 £3.84
11	HV525 34 43-03 Available to backorder	Fuel Hose	£12.80 £10.67
12	HV581 14 31-01 Available to backorder	Screw Itxscfm	£0.95 £0.79
13	HV525 58 81-01 Available to backorder	Sealing	£6.29 £5.24
14	HV505 16 52-02 Available to backorder	Flange	£6.67 £5.56
15	HV503 22 65-03 Available to backorder	Square Nut	£2.71 £2.26
16	HV501 18 20-01 Available to backorder	Baffle	£7.70 £6.42
17	HV575 23 53-01 Available to backorder	Inlet Pipe (Std)	£28.43 £23.69
17	HV575 23 53-02 Available to backorder	Inlet Pipe (For extrem cold conditions.)	£30.79 £25.66
18	HV526 81 81-01 Available to backorder	Screw Itxscm	£0.72 £0.60
19	HV591 15 83-01 Available to backorder	Carburettor Kit (C1M-140054E)	£166.20 £138.50
20	HV582 17 95-01 Available to backorder	Sealing	£7.70 £6.42
21	HV590 05 95-01 Available to backorder	Sealing	£7.82 £6.52
22	HV537 21 32-05 Available to backorder	Knob	£7.26 £6.05
23	HV589 34 07-01 Available to backorder	Contact Clamp	£3.07 £2.56
24	HV589 34 06-01 Available to backorder	Retainer	£3.59 £2.99
25	HV582 02 51-01 Available to backorder	Support Sleeve	£12.82 £10.68
26	HV503 93 66-01 In stock	Purge	£15.11 £12.59
