Husqvarna 570II - Clutch Cover

Husqvarna 570II - Clutch Cover

Part No. 570ii_clutch_cover-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 570II - Clutch Cover

Husqvarna 570II - Clutch Cover

Description

Husqvarna 570II

Model Year -

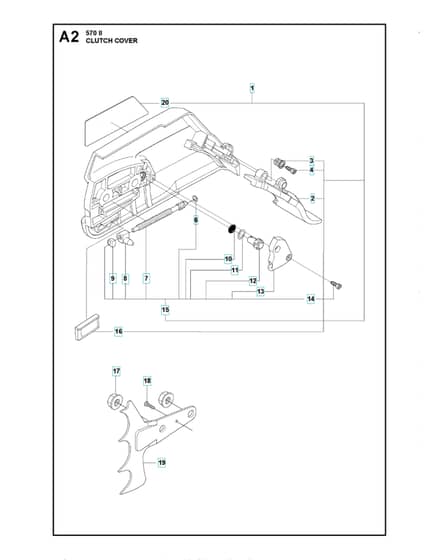

Clutch Cover - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV537 03 35-71 Available to backorder	Clutch Cover Assy		£55.52 £46.27
	2		HV503 76 29-02 Available to backorder	Chip Guard		£8.34 £6.95
	3		HV503 89 70-01 Available to backorder	Sleeve		£5.63 £4.69
	6		HV503 23 00-66 Available to backorder	Washer		£2.30 £1.92
	7		HV537 07 95-02 Available to backorder	Worm Screw		£12.84 £10.70
	8		HV503 99 83-01 Available to backorder	Pawl		£7.14 £5.95
	9		HV537 01 74-01 Available to backorder	Bearing Sleeve		£5.75 £4.79
	10		HV740 48 07-02 Available to backorder	O-Ring		£3.82 £3.18
	11		HV503 23 00-63 Available to backorder	Washer		£2.30 £1.92
	12		HV537 07 94-02 Available to backorder	Worm Wheel		£12.84 £10.70
	13		HV537 01 68-01 Available to backorder	Cover		£6.40 £5.33
	15		HV537 04 41-02 Available to backorder	Chain Tensioner		£47.48 £39.57
	16		HV501 51 72-01 Available to backorder	Chain Guide		£4.55 £3.79
	17		HV503 22 00-01 In stock	Hexagon Nut		£2.63 £2.19
	18		HV503 21 28-10 Available to backorder	Screw Ccrpant		£1.32 £1.10
	19		HV503 71 97-01 Available to backorder	Spike		£19.82 £16.52
	20		HV537 03 38-03 Available to backorder	Label		£2.71 £2.26

Description

Husqvarna 570II

Model Year -

Clutch Cover - Parts Diagram
