Husqvarna 570 - 2011-Current - Fuel Tank

Husqvarna 570 - 2011-Current - Fuel Tank

Part No. 570_2011_current_fuel_tank-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 570 - 2011-Current - Fuel Tank

Husqvarna 570 - 2011-Current - Fuel Tank

Description

Husqvarna 570

Model Year - 2011-Current

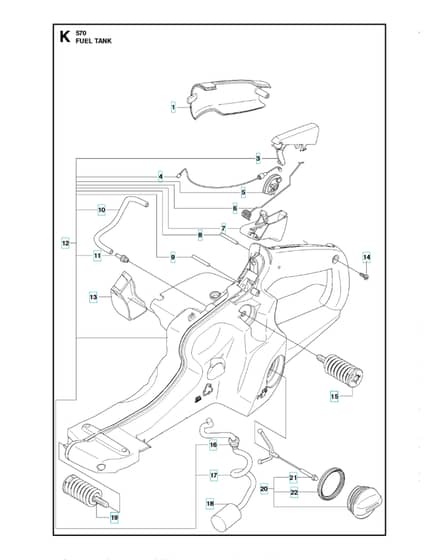

Fuel Tank - Parts Diagram

Ref.		Img.	Part No.	Details
	3		HV537 20 84-01 Available to backorder	Throttle Lockout		£7.18 £5.98
	4		HV537 21 11-01 Available to backorder	Throttle Cable		£21.16 £17.63
	5		HV537 20 85-01 Available to backorder	Lever		£7.06 £5.88
	6		HV537 20 98-01 Available to backorder	Spring		£3.29 £2.74
	7		HV537 20 83-01 Available to backorder	Throttle Trigger		£8.48 £7.07
	9		HV720 12 40-20 In stock	Parallel Pin		£1.36 £1.13
	12		HV537 21 35-04 Available to backorder	Fuel Tank		£188.64 £157.20
	14		HV503 21 28-10 Available to backorder	Screw Ccrpant		£1.32 £1.10
	15		HV537 21 03-02 Available to backorder	Antivibration Elementhard		£22.09 £18.41
	15		HV537 21 03-01 Available to backorder	Antivibration Elementstd		£25.66 £21.38
	16		HV503 73 58-01 In stock	Bushing		£5.50 £4.58
	17		HV581 75 62-02 Available to backorder	Fuel Hose		£10.07 £8.39
	18		HV503 44 32-01 In stock	Fuel Filter		£3.94 £3.28
	19		HV537 21 03-03 Available to backorder	Antivibration Elementstd		£25.66 £21.38
	19		HV537 21 03-04 Available to backorder	Antivibration Elementhard		£24.94 £20.78
	21		HV503 57 89-01 Available to backorder	Holder		£5.42 £4.52

Description

Husqvarna 570

Model Year - 2011-Current

Fuel Tank - Parts Diagram
