Husqvarna 570 - 2011-Current - Clutch & Oil Pump

Name: Husqvarna 570 - 2011-Current - Clutch & Oil Pump
SKU: 570_2011_current_clutch_oil_pump-group
Price: 0.63 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 570 - 2011-Current - Clutch & Oil Pump

Description

Husqvarna 570

Model Year - 2011-Current

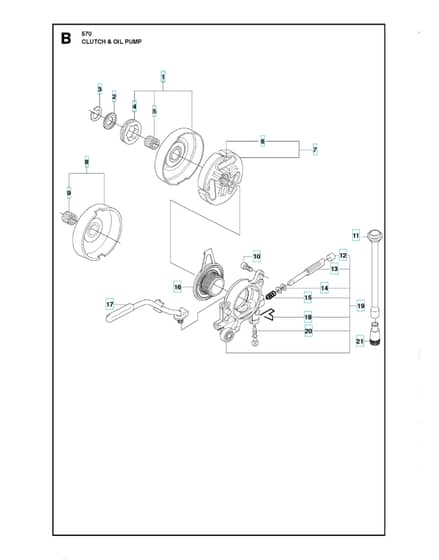

Clutch & Oil Pump - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV503 75 24-01 Available to backorder	Washer	£2.76 £2.30
3	HV503 27 21-01 In stock	E-Clip	£0.76 £0.63
4	HV505 30 36-61 Available to backorder	Rim3/8 X 8T	£14.04 £11.70
4	HV501 59 80-02 Available to backorder	Rim3/8 X 7T	£13.44 £11.20
8	HV503 86 17-03 In stock	Clutch Drum Assyspur X 7T	£56.86 £47.38
9	HV503 43 20-01 Available to backorder	Needle Holder	£11.05 £9.21
11	HV501 89 53-01 Available to backorder	Oil Hose	£13.82 £11.52
12	HV503 62 49-01 Available to backorder	Sealing Plug	£5.08 £4.23
13	HV503 52 15-01 Available to backorder	Pump Piston	£18.56 £15.47
14	HV503 23 00-04 Available to backorder	Washer	£2.34 £1.95
15	HV501 61 58-01 Available to backorder	Spring	£3.36 £2.80
16	HV537 20 78-04 Available to backorder	Pump Pinion	£11.18 £9.32
17	HV537 20 91-01 Available to backorder	Oil Pressure Hose	£14.56 £12.13
18	HV503 81 30-01 Available to backorder	Spring	£3.36 £2.80
19	HV503 52 13-03 Available to backorder	Oil Pump Assy	£104.22 £86.85
20	HV503 81 13-01 Available to backorder	Screw	£2.58 £2.15
21	HV501 54 41-02 Available to backorder	Oil Screen	£13.20 £11.00
