Husqvarna 564 XP - 970711418 - Crankcase

Name: Husqvarna 564 XP - 970711418 - Crankcase
SKU: 564_XP_970711418_ZA_994524-group
Price: 0.64 GBP
Availability: InStock

Part No. 564_XP_970711418_ZA_994524-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 564 XP - 970711418 - Crankcase

Description

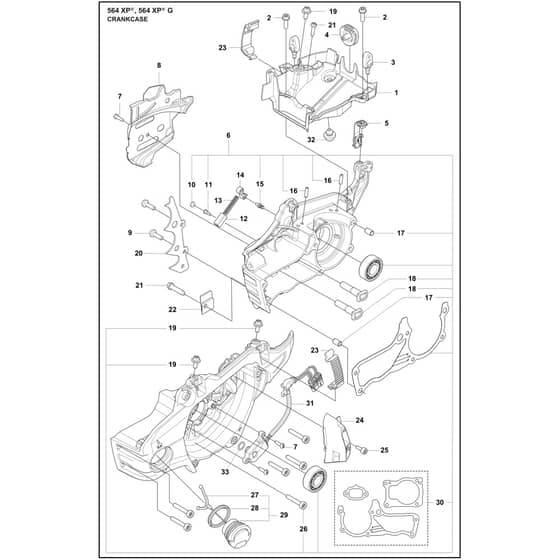

Husqvarna 564 XP - 970711418 - Crankcase - Parts Diagram

	Part No.	Details
1	HV537 53 45-01 Available to backorder	Inlet Cover	£26.34 £21.95
2	HV575 88 57-03 Available to backorder	Screw Itxscfm	£0.77 £0.64
3	HV597 90 97-01 Available to backorder	Damper	£5.92 £4.93
4	HV595 84 53-01 Available to backorder	Grommet	£4.37 £3.64
5	HV548 02 83-01 Available to backorder	Deflection Limiter	£5.51 £4.59
6	HV546 05 88-01 Available to backorder	Crankcase Kit	£179.88 £149.90
8	HV529 82 98-01 Available to backorder	Chain Guide Plate	£5.51 £4.59
9	HV575 79 35-01 Available to backorder	Screw Itxpanm	£0.85 £0.71
10	HV537 40 35-01 Available to backorder	Filter	£4.50 £3.75
11	HV530 02 61-19 In stock	Check Valve	£6.40 £5.33
12	HV537 21 07-01 Available to backorder	Spring Guide	£3.32 £2.77
13	HV503 43 65-01 Available to backorder	Position Spring	£3.52 £2.93
14	HV505 20 12-01 Available to backorder	Catch	£4.12 £3.43
15	HV503 75 18-01 Available to backorder	Pin	£1.45 £1.21
16	HV720 12 69-52 Available to backorder	Parallel Pin	£3.84 £3.20
18	HV537 05 13-01 Available to backorder	Bar Bolt	£5.51 £4.59
19	HV525 82 44-01 Available to backorder	Screw Itxscm	£1.91 £1.59
20	HV529 82 99-01 Available to backorder	Spike	£12.37 £10.31
21	HV582 21 33-01 Available to backorder	Screw	£0.77 £0.64
22	HV522 89 39-01 Available to backorder	Chain Catcher	£5.02 £4.18
23	HV595 30 30-03 In stock	Snap Locking	£4.37 £3.64
24	HV529 82 95-01 Available to backorder	Air Nozzle	£5.40 £4.50
25	HV574 35 35-05 Available to backorder	Screw Itxscm	£1.56 £1.30
26	HV503 21 53-30 Available to backorder	Screw Itxscm	£2.69 £2.24
27	HV503 57 89-01 Available to backorder	Holder	£5.42 £4.52
28	HV529 82 64-01 Available to backorder	Gasket	£13.63 £11.36
29	HV522 62 00-01 Available to backorder	Tank Cap Assy	£8.68 £7.23
29	HV522 62 00-01-1 Available to backorder	Tank Cap Assy	£7.00 £5.83
30	HV548 08 60-01 Available to backorder	Gasket Kit	£15.60 £13.00
31	HV546 60 05-01 Available to backorder	Sensor Assy	£99.96 £83.30
32	HV503 84 61-01 Available to backorder	Buffer	Was £5.90 £4.92 Special Price £2.39 £1.99
