Husqvarna 564 XP - 970711418 - Chain Brake And Clutch Cover

Name: Husqvarna 564 XP - 970711418 - Chain Brake And Clutch Cover
SKU: 564_XP_970711418_FF_273849-group
Price: 0.59 GBP
Availability: InStock

Part No. 564_XP_970711418_FF_273849-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 564 XP - 970711418 - Chain Brake And Clutch Cover

Description

Husqvarna 564 XP - 970711418 - Chain Brake And Clutch Cover - Parts Diagram

	Part No.	Details

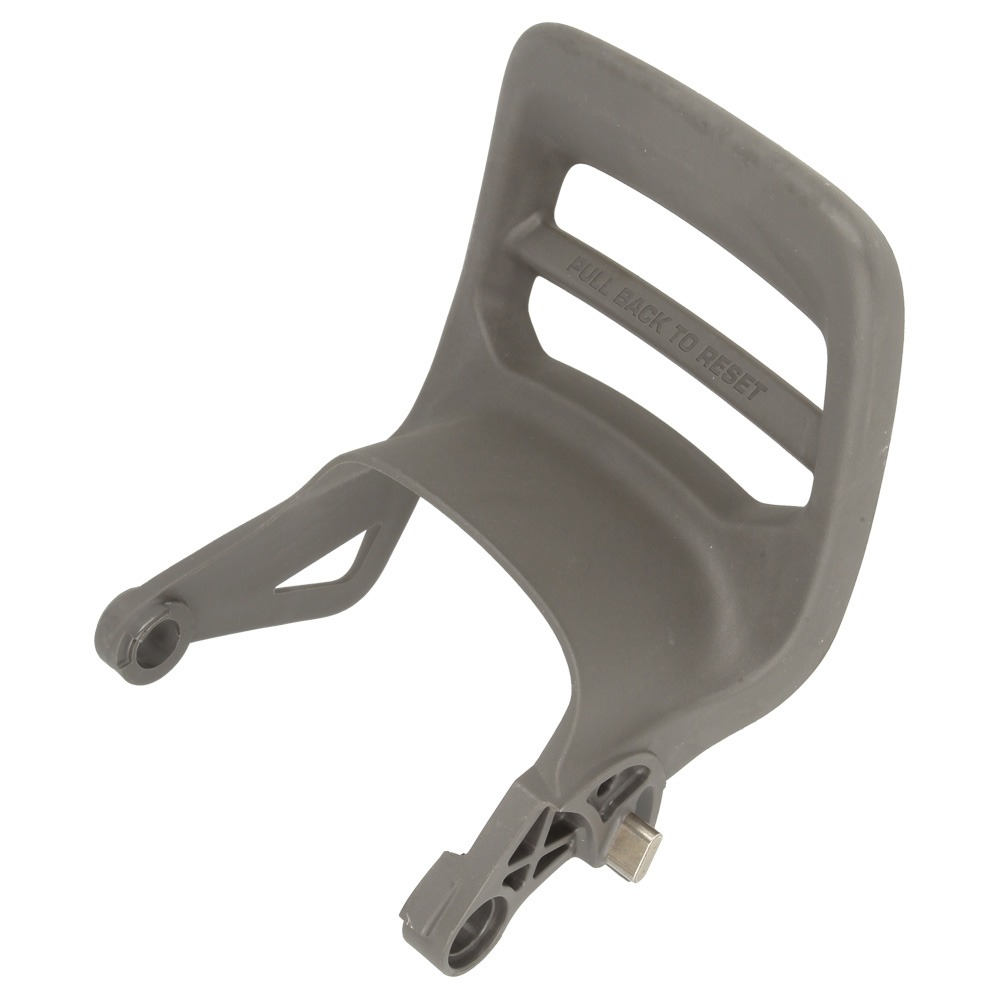

1	HV529 84 44-01 Available to backorder	Hand Guard	£28.55 £23.79

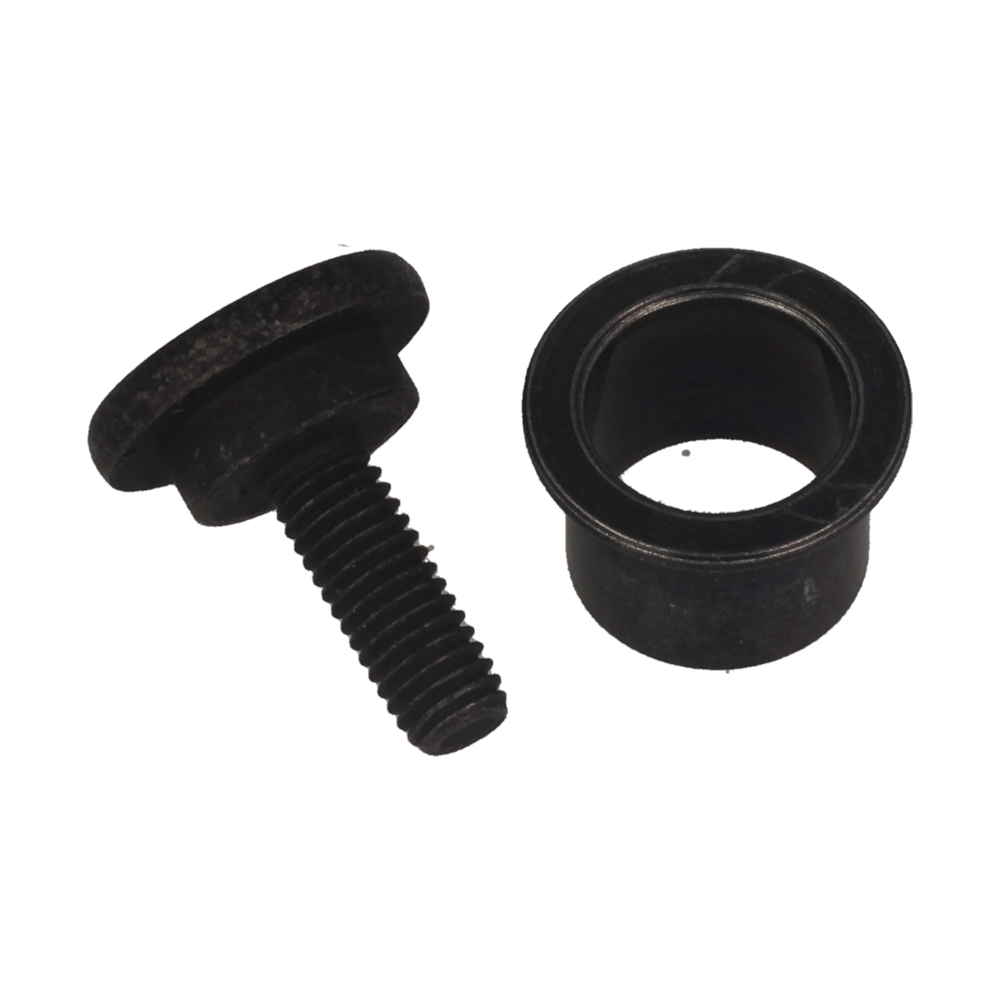

2	HV596 21 82-01 Available to backorder	Screw Kit	£3.46 £2.88
3	HV503 75 18-01 Available to backorder	Pin	£1.45 £1.21
4	HV596 21 81-01 Available to backorder	Knee Joint Assy	£28.20 £23.50
5	HV529 96 46-01 Available to backorder	Brake Band Assy	£11.00 £9.17
6	HV531 26 67-01 Available to backorder	Clutch Cover Assy	£66.72 £55.60
7	HV547 31 65-01 Available to backorder	Guard	£12.86 £10.72
8	HV529 84 49-01 Available to backorder	Cover	£6.74 £5.62
9	HV526 22 18-01 Available to backorder	Screw Citxpant	£1.24 £1.03
10	HV525 38 87-02 Available to backorder	Chain Guide	£5.14 £4.28
11	HV575 26 04-05 Available to backorder	Chain Tensioner Kit	£7.98 £6.65
12	HV740 48 07-02 Available to backorder	O-Ring	£3.82 £3.18
13	HV503 23 00-63 Available to backorder	Washer	£2.30 £1.92
14	HV537 01 74-01 Available to backorder	Bearing Sleeve	£5.75 £4.79
15	HV531 01 29-01 Available to backorder	Chain Brake	£3.54 £2.95
16	HV531 22 28-01 Available to backorder	Snap Ring	£0.71 £0.59
