Husqvarna 562XP - Cylinder Piston

Husqvarna 562XP - Cylinder Piston

Part No. 562xp_cylinder_piston-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 562XP - Cylinder Piston

Husqvarna 562XP - Cylinder Piston

Description

Husqvarna 562XP

Model Year -

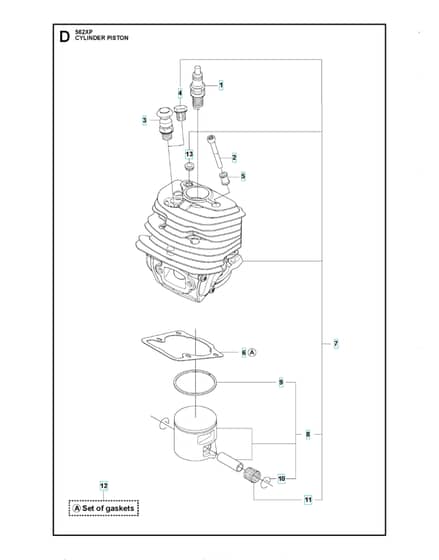

Cylinder Piston - Parts Diagram

Ref.		Img.	Part No.	Details
	2		HV582 39 27-01 In stock	Screw		£0.79 £0.66
	3		HV575 27 69-01 Available to backorder	Decompression Valve		£17.32 £14.43
	4		HV503 55 22-01 Available to backorder	Plug		£8.06 £6.72
	5		HV576 71 76-02 In stock	Sleeve		£5.75 £4.79
	6		HV510 16 49-01 In stock	Gasket		£4.12 £3.43
	7		HV575 35 58-05 Available to backorder	Cylinder Assy up to s/n - 201399999		£309.22 £257.68
	8		HV584 80 78-06 Available to backorder	Piston Assy		£112.92 £94.10
	9		HV505 21 57-01 Available to backorder	Piston Ring		£12.97 £10.81
	10		HV737 44 10-00 Available to backorder	Snap Ring		£0.74 £0.62
	11		HV503 25 63-02 Available to backorder	Needle Bearing		£10.78 £8.98
	12		HV575 27 00-03 In stock	Gasket Kita		£19.72 £16.43
	13		HV520 29 11-01 Available to backorder	Bushing		£5.63 £4.69
	14		HV575 35 58-07 Available to backorder	Cylinder Assy s/n from 20141400001		£314.86 £262.38

Description

Husqvarna 562XP

Model Year -

Cylinder Piston - Parts Diagram
