Husqvarna 562XP - Carburetor & Air Filter

Name: Husqvarna 562XP - Carburetor & Air Filter
SKU: 562xp_carburetor_air_filter-group
Price: 0.6 GBP
Availability: InStock

Part No. 562xp_carburetor_air_filter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 562XP - Carburetor & Air Filter

Description

Husqvarna 562XP

Model Year -

Carburetor & Air Filter - Parts Diagram

	Part No.	Details

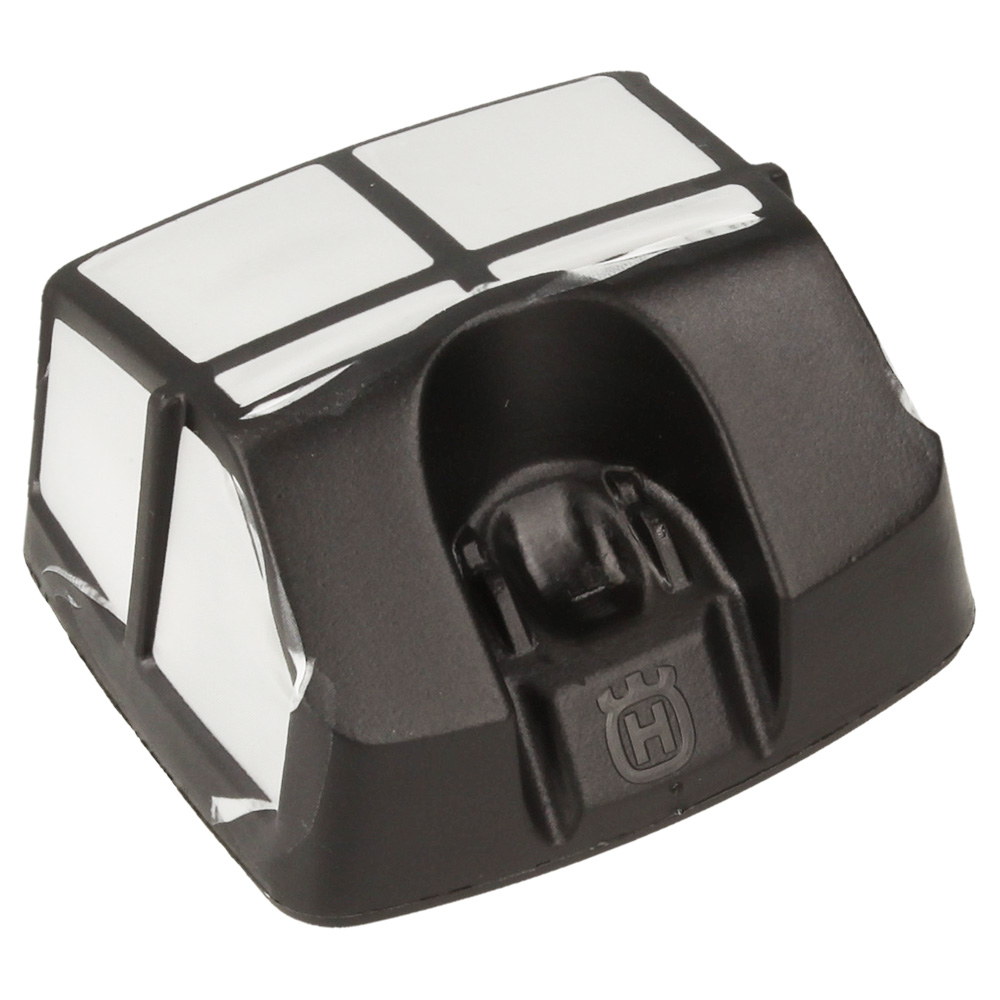

1	HV522 67 50-01 In stock	Air Filter Assynylon 80 Μm Black S/N Up To - 20202600072	£31.58 £26.32
1	HV590 45 88-03 Available to backorder	Air Filter Assynon Woven Nature S/N From 20202600073 -	£19.40 £16.17
1	HV522 67 50-04 Available to backorder	Air Filter Assynylon 44 Μm Yellow S/N Up To - 20202600072	£29.21 £24.34
1	HV590 45 88-01 Available to backorder	Air Filternylon 64 Μm Black S/N From 20202600073 -	£29.28 £24.40
1	HV522 67 50-03 Available to backorder	Air Filter Assyfelt White S/N Up To - 20202600072	£31.31 £26.09
1	HV590 45 88-02 In stock	Air Filternylon 25 Μm Yellow S/N From 20202600073 -	£18.56 £15.47

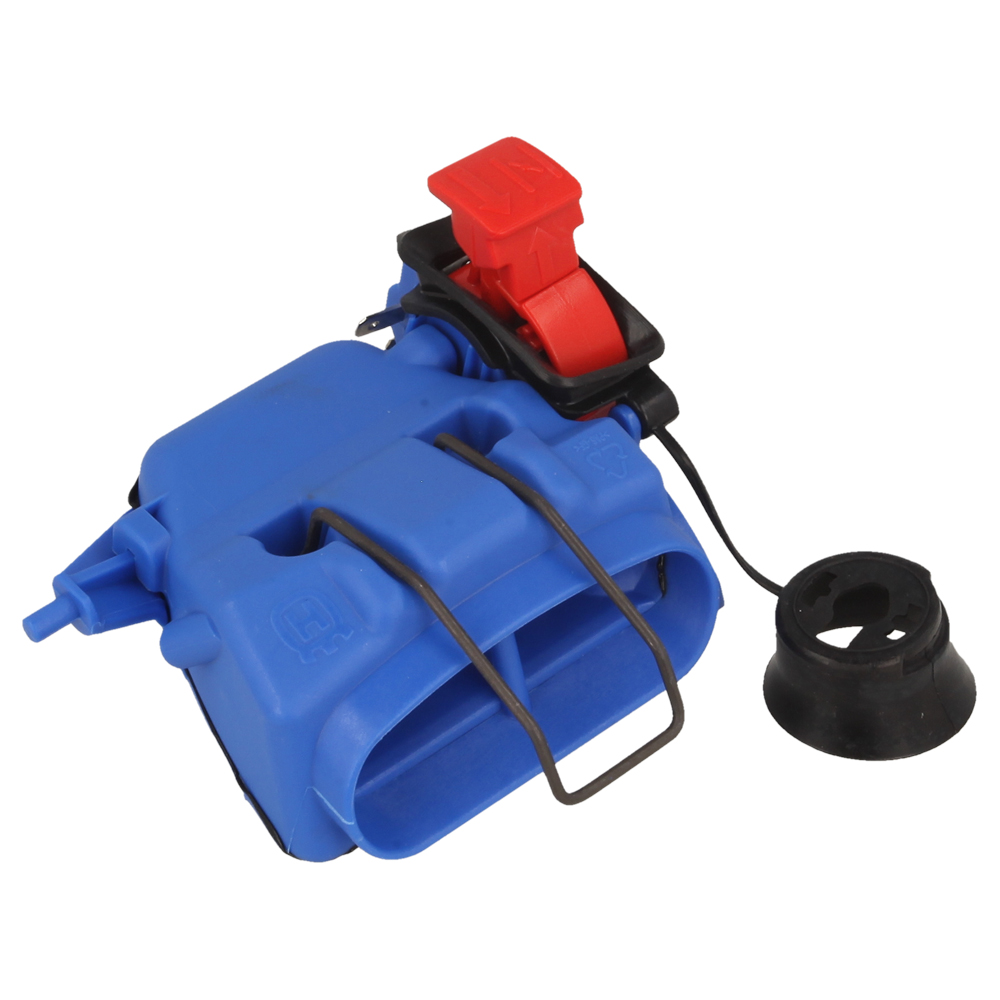

2	HV525 39 79-06 Available to backorder	Filter Holder Assyxpg S/N Up To - 20202600072	£16.66 £13.88
2	HV525 39 79-05 Available to backorder	Filter Holder Assyxp S/N Up To - 20202600072	£17.94 £14.95
3	HV505 17 69-01 Available to backorder	Shackles/N Up To - 20202600072	£5.12 £4.27
4	HV510 01 72-02 Available to backorder	Choke Control Assy	£9.62 £8.02
5	HV505 15 62-01 Available to backorder	Screw	£1.94 £1.62
6	HV525 58 81-01 Available to backorder	Sealing	£6.29 £5.24
7	HV503 93 66-01 In stock	Purge	£15.11 £12.59
8	HV574 35 35-03 Available to backorder	Screw Itxscm	£2.36 £1.97
9	HV589 35 71-01 Available to backorder	Ventilating Hoses/N Up To - 20154799999	£14.92 £12.43
9	HV525 34 43-03 Available to backorder	Fuel Hosexp S/N From 20173800688	£12.80 £10.67
9	HV587 64 54-04 Available to backorder	Ventilating Hoses/N From 20154800001	£12.26 £10.22
10	HV579 19 41-01 Available to backorder	Carburettors/N Up To - 20121401172 (Zama El44)	£159.60 £133.00
11	HV526 81 81-01 Available to backorder	Screw Itxscm	£0.72 £0.60
12	HV505 16 52-02 Available to backorder	Flange	£6.67 £5.56
13	HV503 22 65-03 Available to backorder	Square Nut	£2.71 £2.26
14	HV583 96 41-03 Available to backorder	Inlet Pipe	£30.76 £25.63
14	HV583 96 41-04 Available to backorder	Inlet Pipecold Resistant	£58.22 £48.52
15	HV520 29 09-01 Available to backorder	Intermediate Wall	£7.06 £5.88
16	HV525 61 92-01 In stock	Sealing	£2.40 £2.00
17	HV525 61 90-01 Available to backorder	Sealing	£6.67 £5.56
18	HV523 05 68-01 Available to backorder	Fuel Hose	£4.61 £3.84
20	HV577 53 64-01 Available to backorder	Wiring Assys/N From 20121401173 -	£13.46 £11.22
21	HV582 02 51-01 Available to backorder	Support Sleeve	£12.82 £10.68
23	HV731 23 14-01 In stock	Hexagon Nuts/N From 20202600073 -	£1.30 £1.08
