Husqvarna 562 XP Mark II - 970663518 - Clutch And Oil Pump

Description

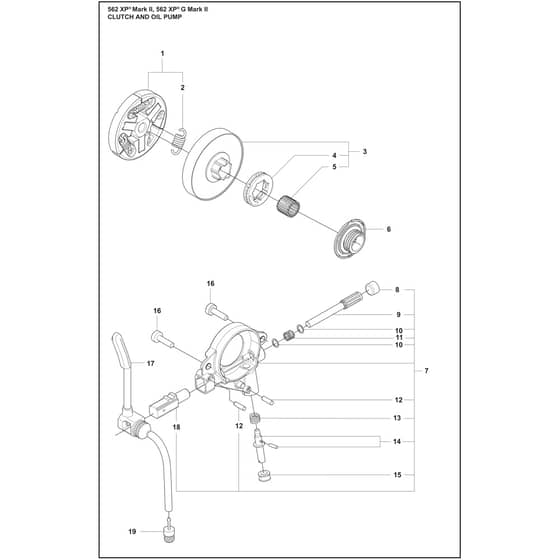

Husqvarna 562 XP Mark II - 970663518 - Clutch And Oil Pump - Parts Diagram

	Part No.	Details
1	HV587 89 92-03 Available to backorder	Clutch Assy	£49.92 £41.60
2	HV502 16 47-01 Available to backorder	Clutch Spring	£5.21 £4.34
3	HV575 26 10-11 Available to backorder	Clutch Drum Assy (3.8" - 7T)	£52.28 £43.57
4	HV501 59 80-02 Available to backorder	Rim Sprocket (3.8" - 7T)	£14.24 £11.87
5	HV599 53 15-01 In stock	Needle Bearing	£10.88 £9.07
6	HV586 20 46-01 Available to backorder	Worm Wheel (3.8")	£5.20 £4.33
7	HV505 19 99-09 Available to backorder	Oil Pump Assy	£43.38 £36.15
8	HV503 62 49-03 Available to backorder	Sealing Plug (Green)	£3.54 £2.95
9	HV505 20 02-03 Available to backorder	Pump Piston	£17.51 £14.59
10	HV503 23 00-60 Available to backorder	Washer	£2.06 £1.72
11	HV503 89 16-01 Available to backorder	Spring	£3.32 £2.77
12	HV720 12 33-00 Available to backorder	Parallel Pin	£1.28 £1.07
13	HV503 89 15-01 Available to backorder	Spring	£2.80 £2.33
14	HV505 15 70-01 Available to backorder	Adjustment Screw	£6.40 £5.33
15	HV505 20 03-01 Available to backorder	Casing	£5.90 £4.92
16	HV526 81 81-02 Available to backorder	Screw Itxscm	£0.95 £0.79
17	HV575 84 78-01 Available to backorder	Oil Hose	£14.42 £12.02
18	HV505 20 01-01 Available to backorder	Pump Cylinder	£7.70 £6.42
19	HV504 71 00-03 Available to backorder	Oil Plummet	£11.56 £9.63
