Husqvarna 562 XP G Mark II - 970663618 - Crankcase

Name: Husqvarna 562 XP G Mark II - 970663618 - Crankcase
SKU: 562_XP_G_Mark_II_970663618_Crankcase_20562XPMkII_2c562XPGMkII_Hi
Price: 0.67 GBP
Availability: InStock

Part No. 562_XP_G_Mark_II_970663618_Crankcase_20562XPMkII_2c562XPGMkII_Hi

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 562 XP G Mark II - 970663618 - Crankcase

Description

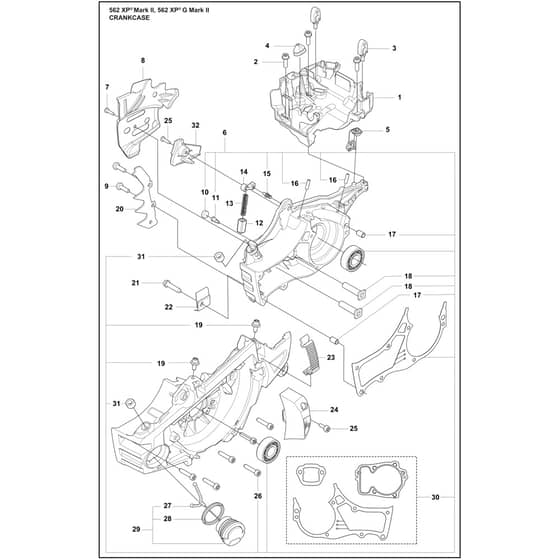

Husqvarna 562 XP G Mark II - 970663618 - Crankcase - Parts Diagram

	Part No.	Details
1	HV531 09 42-01 Available to backorder	Carburettor Area Base	£14.94 £12.45
2	HV525 75 52-02 Available to backorder	Screw Itxscfm	£1.79 £1.49
3	HV597 90 97-01 Available to backorder	Damper	£5.92 £4.93
4	HV581 55 92-01 Available to backorder	Bellows	£4.50 £3.75
5	HV505 12 58-01 Available to backorder	Deflection Limiter	£7.70 £6.42
6	HV536 89 96-02 Available to backorder	Crankcase Kit	£173.40 £144.50
7	HV525 88 74-01 Available to backorder	Screw Citxpant	£1.28 £1.07
8	HV522 74 29-01 Available to backorder	Chain Guide Plate	£9.62 £8.02
9	HV575 79 35-01 Available to backorder	Screw Itxpanm	£0.85 £0.71
10	HV537 40 35-01 Available to backorder	Filter	£4.50 £3.75
11	HV530 02 61-19 In stock	Check Valve	£6.40 £5.33
12	HV537 21 07-01 Available to backorder	Spring Guide	£3.32 £2.77
13	HV503 43 65-01 Available to backorder	Position Spring	£3.52 £2.93
14	HV505 20 12-01 Available to backorder	Catch	£4.12 £3.43
15	HV503 75 18-01 Available to backorder	Pin	£1.45 £1.21
16	HV720 12 69-52 Available to backorder	Parallel Pin	£3.84 £3.20
17	HV593 80 60-01 In stock	Guide Bushing	Was £5.60 £4.67 Special Price £1.80 £1.50
18	HV522 89 38-01 Available to backorder	Bar Bolt	£7.09 £5.91
19	HV525 82 44-01 Available to backorder	Screw Itxscm	£1.91 £1.59
20	HV577 93 52-01 Available to backorder	Spike	£12.32 £10.27
21	HV525 79 81-03 Available to backorder	Screw Itxscft	£0.95 £0.79
22	HV537 37 79-02 Available to backorder	Chain Catcher	£5.00 £4.17
23	HV595 30 30-03 In stock	Snap Locking (Grey)	£4.37 £3.64
24	HV531 07 93-01 Available to backorder	Air Nozzle	£5.66 £4.72
25	HV574 35 35-05 Available to backorder	Screw Itxscm	£1.56 £1.30
26	HV575 84 11-04 Available to backorder	Screw Itxscm	£0.80 £0.67
27	HV503 57 89-01 Available to backorder	Holder	£5.42 £4.52
28	HV537 21 50-01 Available to backorder	Gasket	£5.32 £4.43
29	HV522 62 00-01 Available to backorder	Tank Cap Assy (Grey)	£8.68 £7.23
30	HV536 82 18-01 Available to backorder	Gasket Kit	£17.57 £14.64
31	HV598 85 75-01 Available to backorder	Sleeve	£6.29 £5.24
32	HV538 95 26-01 Available to backorder	Chain Guide	£4.37 £3.64
