Husqvarna 562 XP G Mark II - 970663618 - Chain Brake And Clutch Cover

Name: Husqvarna 562 XP G Mark II - 970663618 - Chain Brake And Clutch Cover
SKU: 562_XP_G_Mark_II_970663618_CHAIN_BRAKE_AND_CLUTCH_COVER-group
Price: 1.03 GBP
Availability: InStock

Part No. 562_XP_G_Mark_II_970663618_CHAIN_BRAKE_AND_CLUTCH_COVER-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 562 XP G Mark II - 970663618 - Chain Brake And Clutch Cover

Description

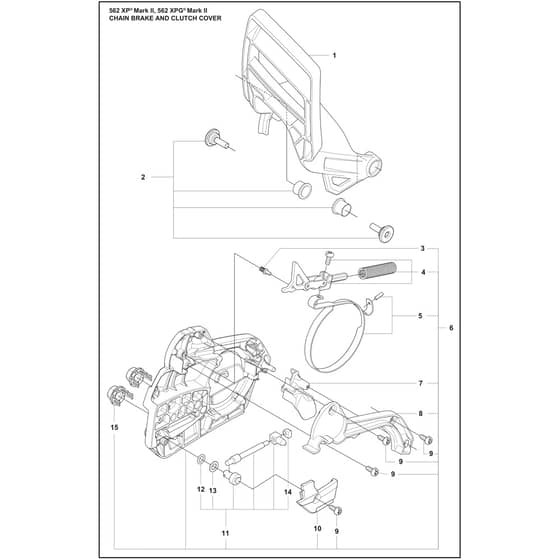

Husqvarna 562 XP G Mark II - 970663618 - Chain Brake And Clutch Cover - Parts Diagram

	Part No.	Details
1	HV535 28 14-01 Available to backorder	Hand Guard	£29.52 £24.60
2	HV596 21 82-01 Available to backorder	Screw Kit (2pcs Screw & 2pcs Bushing)	£3.46 £2.88
3	HV503 75 18-01 Available to backorder	Pin	£1.45 £1.21
4	HV596 21 81-01 Available to backorder	Knee Joint Assy	£28.20 £23.50
5	HV505 19 95-02 In stock	Brake Band Assy	£13.73 £11.44
6	HV525 74 33-05 Available to backorder	Clutch Cover Assy	£94.08 £78.40
7	HV505 20 16-01 Available to backorder	Guard	£9.62 £8.02
8	HV505 19 97-03 Available to backorder	Cover	£8.34 £6.95
9	HV526 22 18-01 Available to backorder	Screw Citxpant	£1.24 £1.03
10	HV525 38 87-01 Available to backorder	Chain Guide	£6.40 £5.33
11	HV575 26 04-05 Available to backorder	Chain Tensioner Kit	£7.98 £6.65
12	HV740 48 07-02 Available to backorder	O-Ring	£3.82 £3.18
13	HV503 23 00-63 Available to backorder	Washer	£2.30 £1.92
14	HV537 01 74-01 Available to backorder	Bearing Sleeve	£5.75 £4.79
15	HV505 19 73-01 In stock	Nut	£4.48 £3.73
