Husqvarna 560XPG - Clutch & Oil Pump

Husqvarna 560XPG - Clutch & Oil Pump

Part No. 560xpg_clutch_oil_pump-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 560XPG - Clutch & Oil Pump

Husqvarna 560XPG - Clutch & Oil Pump

Description

Husqvarna 560XPG

Model Year -

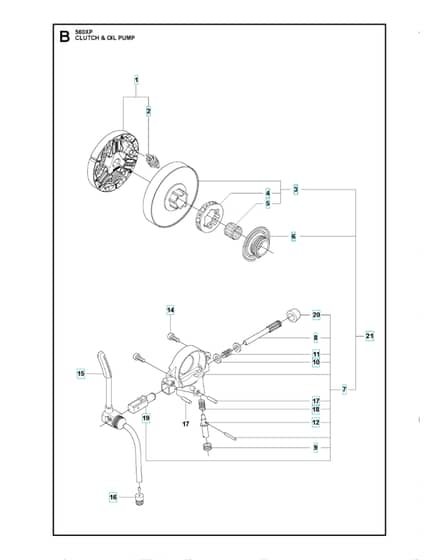

Clutch & Oil Pump - Parts Diagram

Ref.		Img.	Part No.	Details
	2		HV502 16 47-01 Available to backorder	Clutch Springs/N From 20164100193 -		£5.21 £4.34
	2		HV580 65 35-02 Available to backorder	Clutch Springs/N From 20132500001 - Up To S/N 20164100192		£5.99 £4.99
	3		HV575 26 10-05 In stock	Clutch Drum Assy"- Up To S/N 20202200048 "".325"" X7"""		£44.42 £37.02
	3		HV575 26 10-06 Available to backorder	Clutch Drum"- Up To S/N 20202200048 ""3/8"" X7"""		£50.09 £41.74
	4		HV501 59 80-02 Available to backorder	Rim"3/8""X7"		£14.24 £11.87
	5		HV503 25 34-01 In stock	Needle Bearing		£10.88 £9.07
	6		HV505 20 08-01 In stock	Worm Wheel- Up To S/N 20202200048		£10.37 £8.64
	9		HV505 20 03-01 Available to backorder	Casing		£5.90 £4.92
	10		HV503 23 00-60 Available to backorder	Washer		£2.06 £1.72
	11		HV503 89 16-01 Available to backorder	Spring		£3.32 £2.77
	12		HV505 15 70-01 Available to backorder	Adjustment Screw		£6.40 £5.33
	14		HV526 81 81-02 Available to backorder	Screw Itxscm		£0.95 £0.79
	15		HV505 20 04-02 Available to backorder	Oil Hose		£12.97 £10.81
	16		HV504 71 00-03 Available to backorder	Oil Plummet		£11.56 £9.63
	17		HV720 12 33-00 Available to backorder	Parallel Pin		£1.28 £1.07
	18		HV503 89 15-01 Available to backorder	Spring		£2.80 £2.33
	19		HV505 20 01-01 Available to backorder	Pump Cylinder		£7.70 £6.42
	20		HV503 62 49-02 Available to backorder	Sealing Plug		£3.60 £3.00

Description

Husqvarna 560XPG

Model Year -

Clutch & Oil Pump - Parts Diagram
