Husqvarna 560 XP Mark II - 970657015 - Starter

Description

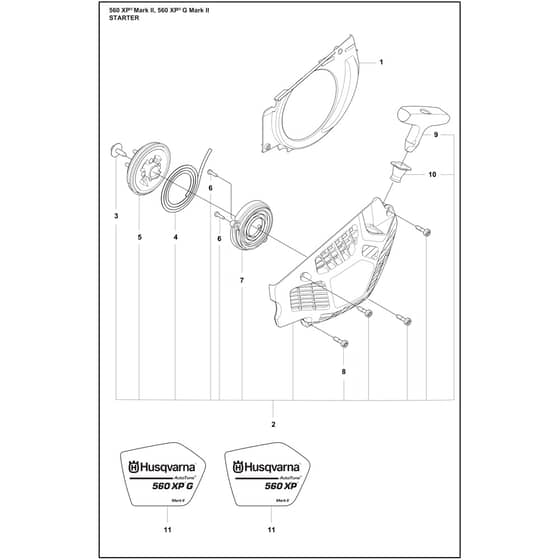

Husqvarna 560 XP Mark II - 970657015 - Starter - Parts Diagram

	Part No.	Details
1	HV531 10 88-01 Available to backorder	Air Conductor	£10.63 £8.86
2	HV536 82 21-02 Available to backorder	Starter Assy	£57.00 £47.50
3	HV576 35 66-01 Available to backorder	Screw Itxsct	£0.77 £0.64
5	HV531 31 48-01 Available to backorder	Starter Pulley Assy	£13.88 £11.57
6	HV525 88 74-01 Available to backorder	Screw Citxpant	£1.28 £1.07
7	HV598 75 03-02 Available to backorder	Spring Cassette Assy	£15.19 £12.66
8	HV525 82 45-01 In stock	Screw Citxpanmo	£1.50 £1.25
9	HV537 23 25-01 Available to backorder	Starter Handle	£7.79 £6.49
10	HV537 28 32-01 Available to backorder	Sleeve	£7.60 £6.33
