Husqvarna 560 XP Mark II - 970657015 - Cylinder Piston

Husqvarna 560 XP Mark II - 970657015 - Cylinder Piston

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 560 XP Mark II - 970657015 - Cylinder Piston

Husqvarna 560 XP Mark II - 970657015 - Cylinder Piston

Description

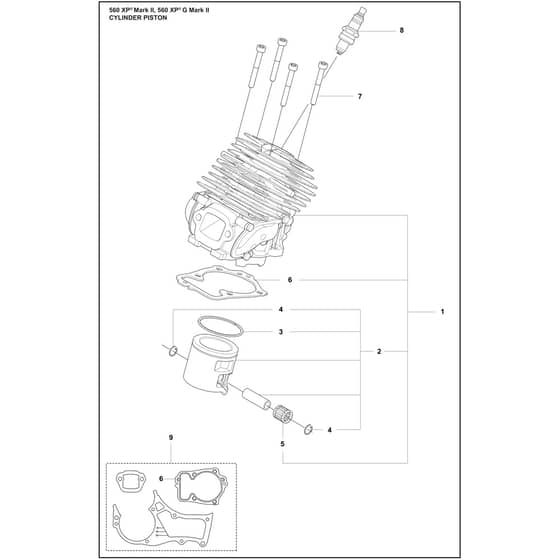

Husqvarna 560 XP Mark II - 970657015 - Cylinder Piston - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV531 09 68-04 Available to backorder	Cylinder Kit		£424.27 £353.56
	2		HV546 10 80-04 Available to backorder	Piston Assy		£111.53 £92.94
	4		HV737 44 10-00 Available to backorder	Snap Ring		£0.72 £0.60
	5		HV501 10 31-01 Available to backorder	Needle Bearing		£11.26 £9.38
	6		HV531 09 59-01 Available to backorder	Gasket		£12.56 £10.47
	7		HV525 82 49-03 Available to backorder	Screw Itxscm		£0.71 £0.59
	8		3945 In stock	Spark Plug		£3.76 £3.13
	9		HV536 82 18-01 Available to backorder	Gasket Kit		£17.57 £14.64

Description

Husqvarna 560 XP Mark II - 970657015 - Cylinder Piston - Parts Diagram
