Husqvarna 560 XP Mark II - 970657015 - Carburetor And Air Filter

Description

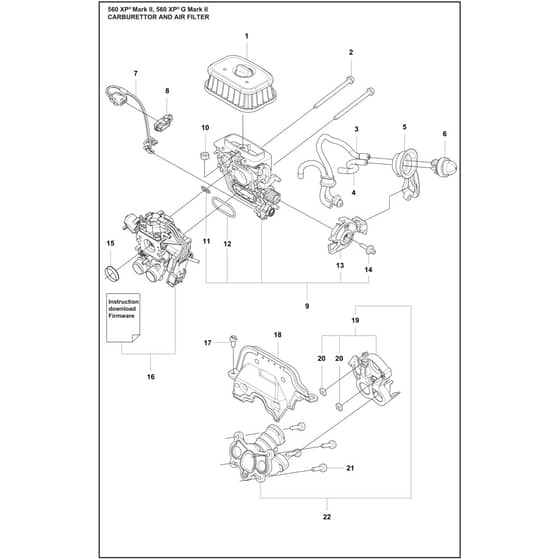

Husqvarna 560 XP Mark II - 970657015 - Carburetor And Air Filter - Parts Diagram

	Part No.	Details
1	HV590 45 88-02 In stock	Air Filter (Yellow. Mesh 25 microns)	£18.56 £15.47
1	HV590 45 88-03 Available to backorder	Air Filter Assy (Nature. Non woven)	£19.40 £16.17
1	HV590 45 88-01 Available to backorder	Air Filter (Black. Mexh 64 microns)	£29.28 £24.40
2	HV596 68 24-02 Available to backorder	Screw	£0.95 £0.79
3	HV525 34 43-03 Available to backorder	Fuel Hose	£12.80 £10.67
4	HV523 05 68-01 Available to backorder	Fuel Hose	£4.61 £3.84
5	HV536 54 96-01 Available to backorder	Sealing	£4.37 £3.64
6	HV540 05 49-01 Available to backorder	Purge	£6.29 £5.24
7	HV536 08 55-01 Available to backorder	Wiring Assy	£123.36 £102.80
8	HV589 34 07-01 Available to backorder	Contact Clamp	£3.07 £2.56
9	HV531 09 79-02 Available to backorder	Filter Holder Assy	£15.94 £13.28
9	HV531 09 79-01 Available to backorder	Filter Holder Assy	£15.94 £13.28
10	HV731 23 14-01 In stock	Hexagon Nut	£1.30 £1.08
11	HV525 61 92-01 In stock	Sealing	£2.40 £2.00
12	HV525 61 90-01 Available to backorder	Sealing	£6.67 £5.56
13	HV510 01 72-03 Available to backorder	Choke Control Assy	£8.86 £7.38
14	HV505 15 62-01 Available to backorder	Screw	£1.94 £1.62
15	HV582 02 51-01 Available to backorder	Support Sleeve	£12.82 £10.68
16	HV546 14 82-01 Available to backorder	Carburettor Kit	£144.36 £120.30
17	HV526 22 20-02 Available to backorder	Screw Citxpant	£1.79 £1.49
18	HV534 97 10-01 Available to backorder	Insulation Wall	£6.49 £5.41
19	HV531 35 29-01 Available to backorder	Flange	£9.08 £7.57
20	HV574 62 04-01 Available to backorder	Nut Square	£3.50 £2.92
21	HV526 81 81-01 Available to backorder	Screw Itxscm	£0.72 £0.60
22	HV531 11 07-01 Available to backorder	Inlet Pipe Assy	£53.74 £44.78
